Crusader Hose

HCHWW040XBA

WATERLORD (HP) Mine Dewatering Layflat Hose

SIZE
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

PLEASE NOTE:
FITTINGS NOT INCLUDED
PRICES ARE PER METRE PRICING. Hose will be cut continously for example if you require 10 metres add quantity of 10 to shopping cart and we will send you 10 metres of Waterlord Layflat Hose.

WATERLORD (HP)

Mine dewatering hose for HIGH PRESSURE (HP) applications with woven reinforcement plus highly abrasive Polyurethane cover and inner lining.

Main Uses

  • Dewatering in Mines
  • High Pressure wash-down Hose
  • Industrial hose for use with certain oils and chemicals
  • Heavy-Duty farm hose
  • Temporary bypass hose
  • Air Hose
Waterlord Features
  • Low coil volume for easy handling
  • Long custom lengths up to 300m (for certain sizes)
  • High pressure (Extra heavy duty)
  • High abrasion resistance
  • Chemical resistant (to many acids)
  • Flexible from -40° C to + 70° C
  • Repairable
  • Potable version available (AS 4020)
  • Made in Australia

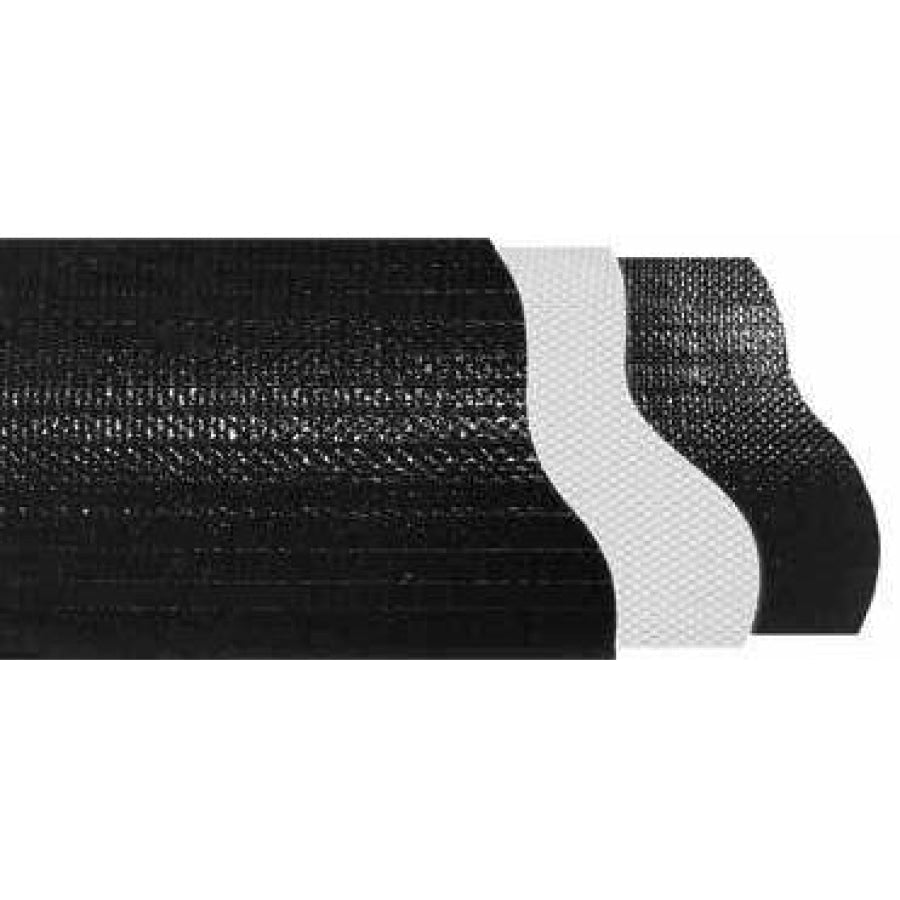

The woven polyester fabric jacket gives the hose its high bursting and tensile load features. The polyurethane cover not only protects the hose against abrasion damage but also against harmful UV radiation and ozone. This unique design renders the hose lightweight yet extremely strong and durable.
Inside Inside Working Burst Burst Bend Tensile Avg. Single Weight
Diameter Diameter Pressure Pressure Pressure Radius @ Load Wall Thickness per metre
(mm) (inch) (bar) (bar) (psi) 60 psi (m) Tonnes (mm) (Kg)
40 HP 1.5” 27 54 783 1.0 3.0 3.0 0.5
50 HP 2" 27 54 783 1.0 3.5 3.0 0.6
76 HP 3" 27 54 783 1.5 8.0 3.8 0.9
102 HP 4" 25 50 725 2.0 10.0 4.0 1.5
127 HP 5" 24 48 696 2.5 14.5 4.2 2.1
152 HP 6" 21 42 609 3.0 16.0 4.5 2.6
203 HP 8" 15 30 435 3.5 22.0 4.5 3.5
254 HP 10" 15 30 435 4.0 30.0 5.0 4.0
305 HP 12" 14 28 406 4.5 31.0 5.0 4.5
HP is High Pressure

Typical Fittings
Crusader Hose can fit a wide range of different couplings to the Waterlord hose. We typically attach the coupling using our patented Waterlord SEGMENTS, which are preferred for high pressure applications in 6”, 8”, 10” and 12” diameters. Waterlord Segments have the added benefits of easy fit on and off site. Wire whipping is an excellent alternative for diameter up to 6”. This technique keeps the couplings on at very high pressures. This is very important as leaks at high pressures can not only be wasteful but can also be dangerous. We offer a testing service whereby the entire hose assembly is certified to high pressure.

PLEASE NOTE:
FITTINGS NOT INCLUDED
PRICES ARE PER METRE PRICING. Hose will be cut continously for example if you require 10 metres add quantity of 10 to shopping cart and we will send you 10 metres of Waterlord Layflat Hose.
