Specifications:
-
Working temperature: 1°C to 60°C
- Maximum pressure rating: 1000 kPa
- Washing Machine Stop: Water inlet 5/8" (18mm) Female FI thread; Water outlet 3/4" (20mm) Male MI thread.
- Elbow: 5/8" (18mm) Male MI thread; 1/2" (15mm) Female FI thread; 75mm long
- Body: DZR Brass
- Check Valve: POM
- CIR Clip: Stainless Steel
- Cartridge: DR Brass
- Button: PO
- Handle Screw: Stainless Steel
- Handle: Zinc
- Cap: DR Brass
- Cover Plate: Stainless Steel
- Ceramic Disc
- Integrated non-return valve designed to assist in elimination of water hammer
- Chrome Plated Finish
- WaterMark approved
- Intended Use: Allows for control over water supply to washing machines
- SKU: WMRW

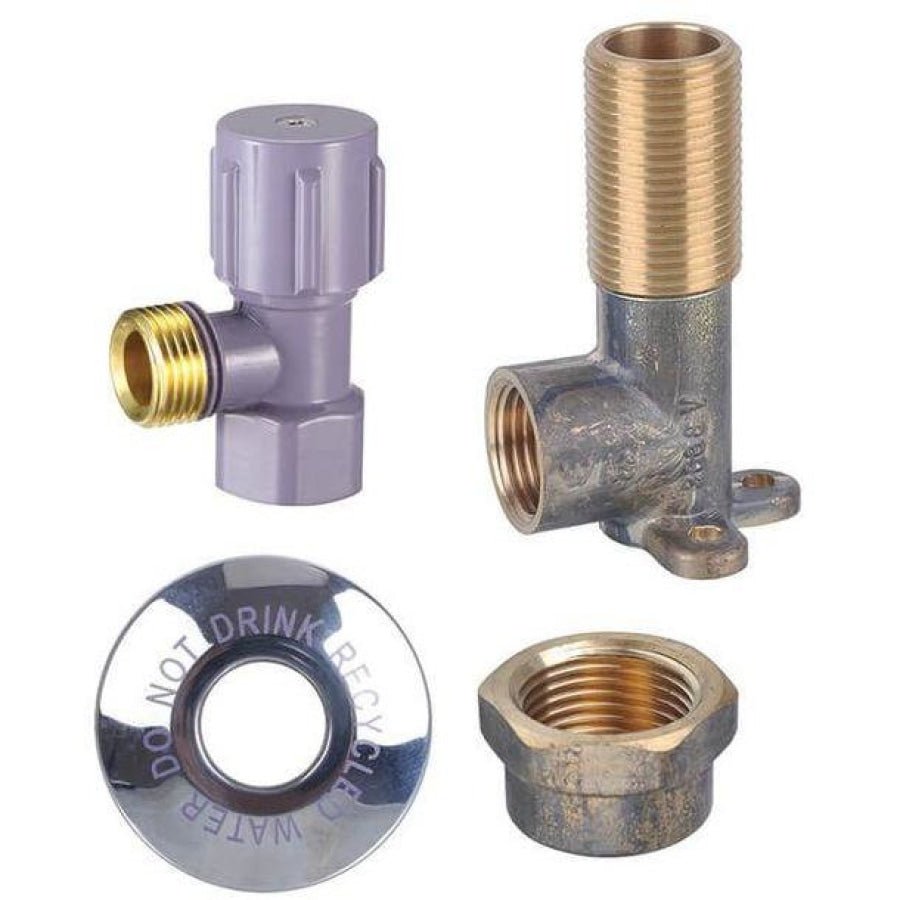

Package Contents:
- WMRWS 18FI x 20MI (5/8" FI Inlet x 3/4" MI Outlet) Recycled Water Washing Machine Stop Tap Ceramic Disc

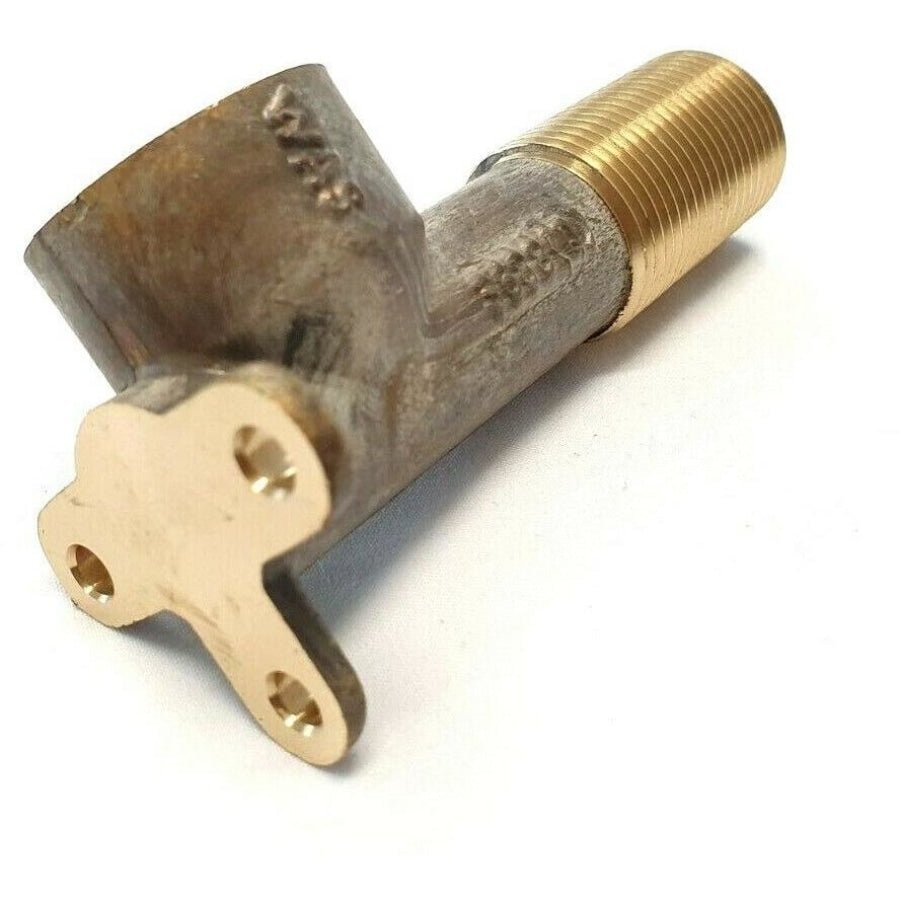

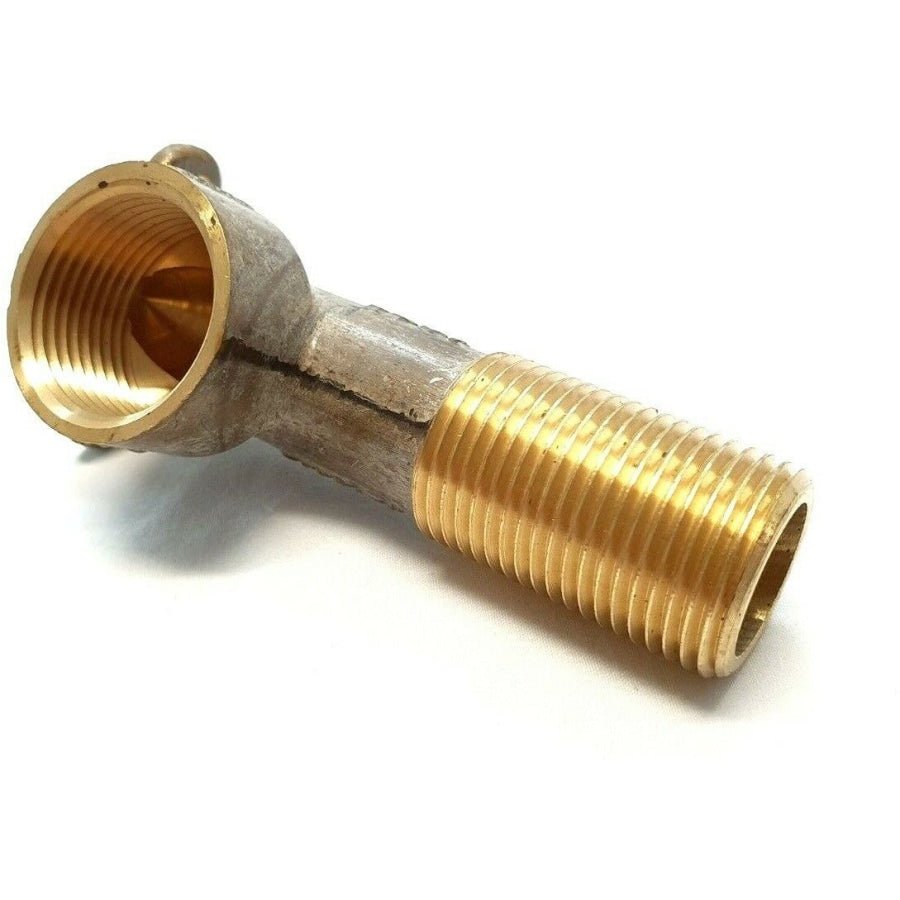

- ELB10 Elbow 18MI x 15FI (5/8" MI x 1/2" FI) (75mm long)

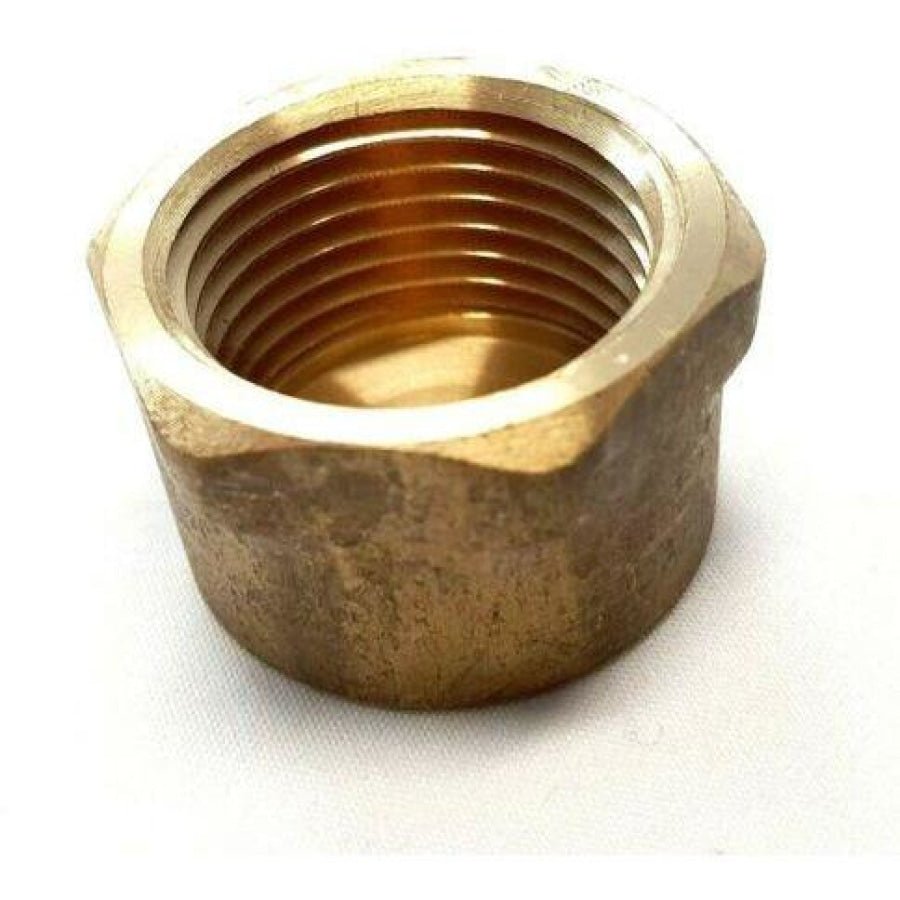

- RWC Cap

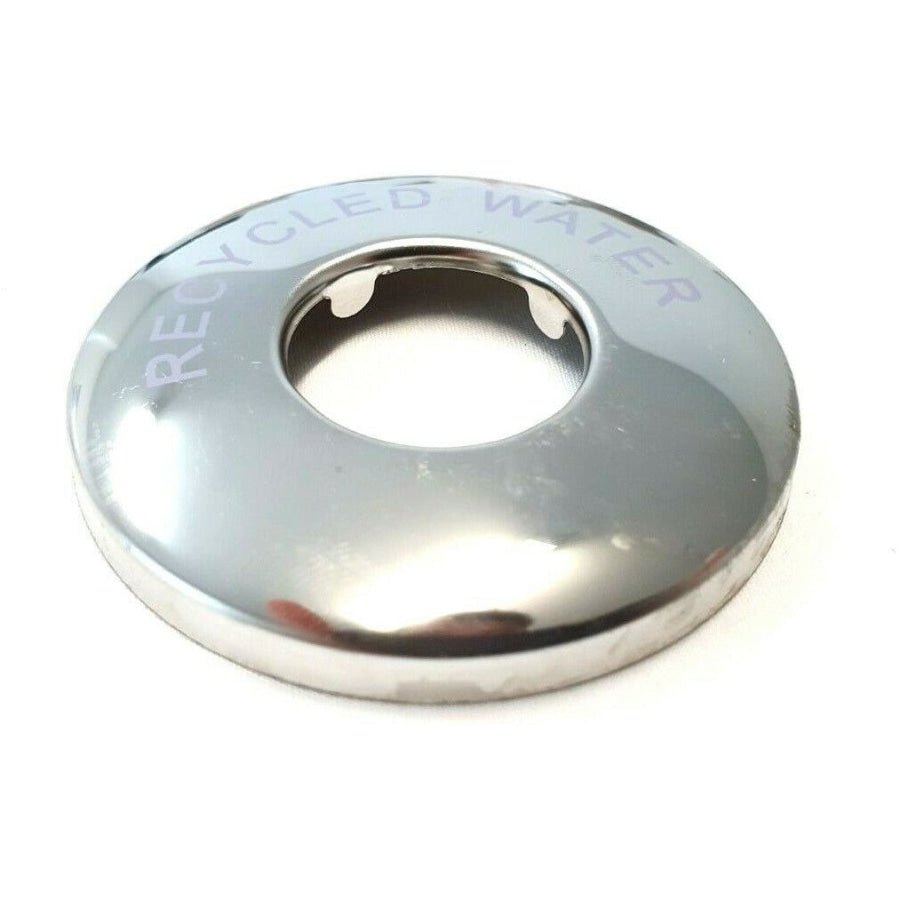

- RWP Cover Plate
Thread dimensions/size note
Australian BSP thread size names can be confusing. The mm and inch naming system are only nominal conventions, they are not the physical measurements of the thread size. E.g. a common 15mm (1/2") fitting will have an actual external male thread diameter or an internal female thread diameter measurement of 20.995mm (0.825"); 20mm (3/4") fitting likewise will measure 26.441mm (1.041")

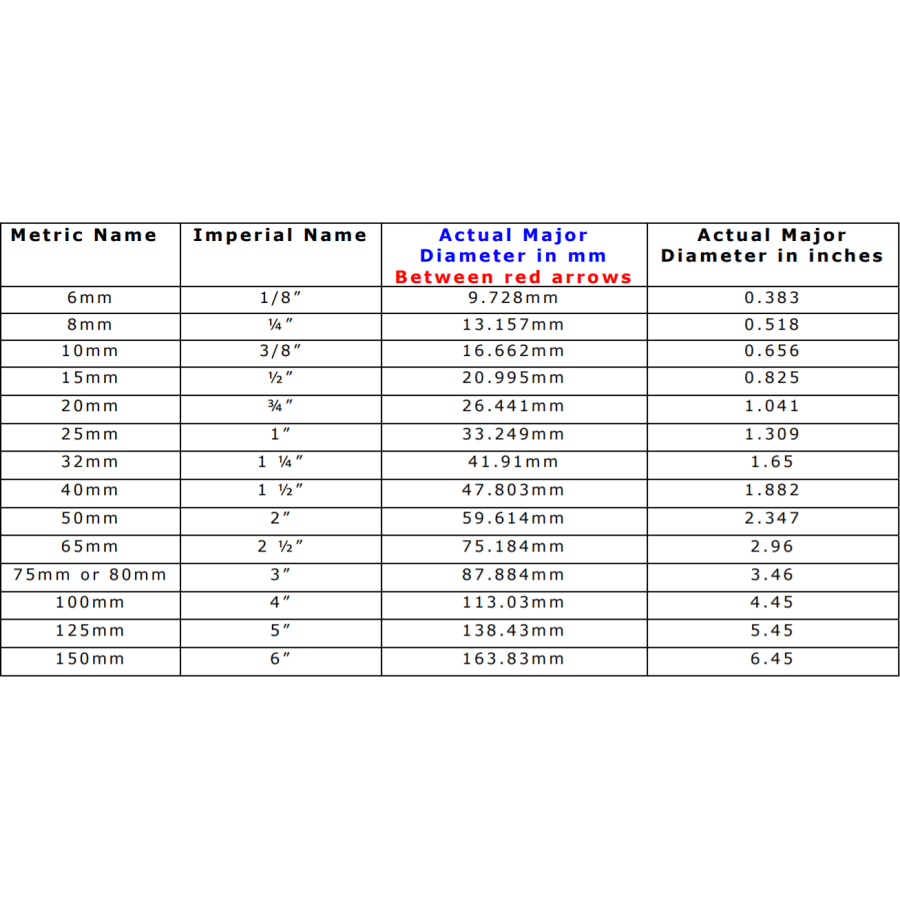

Please refer to our BSP sizing chart provided in the last image in our gallery. Feel free to asks us any questions.
