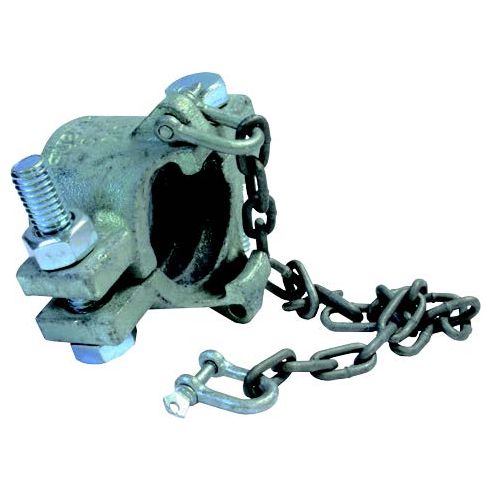

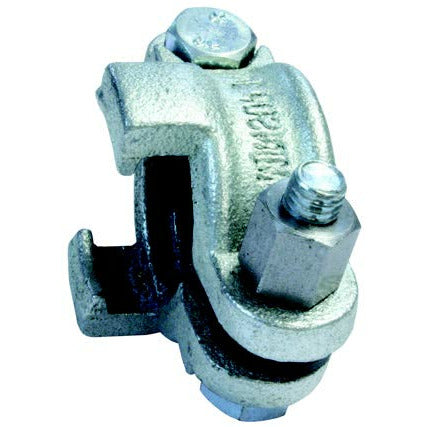

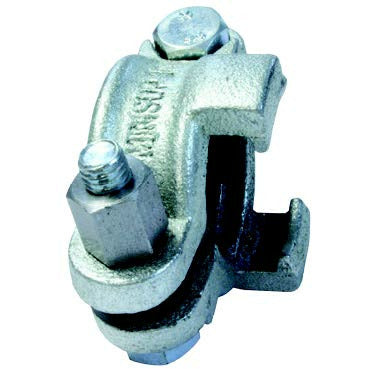

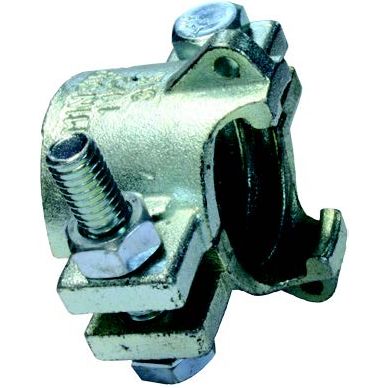

MINSUP Double Bolt Claw Clamp
Applications
- Mining
- Air and Water services
- Wide range of industrial applications
Features
- Positive bolt head location to prevent bolt spinning when tightening
- Gripping fingers provide positive engagement with Minsup hose stern

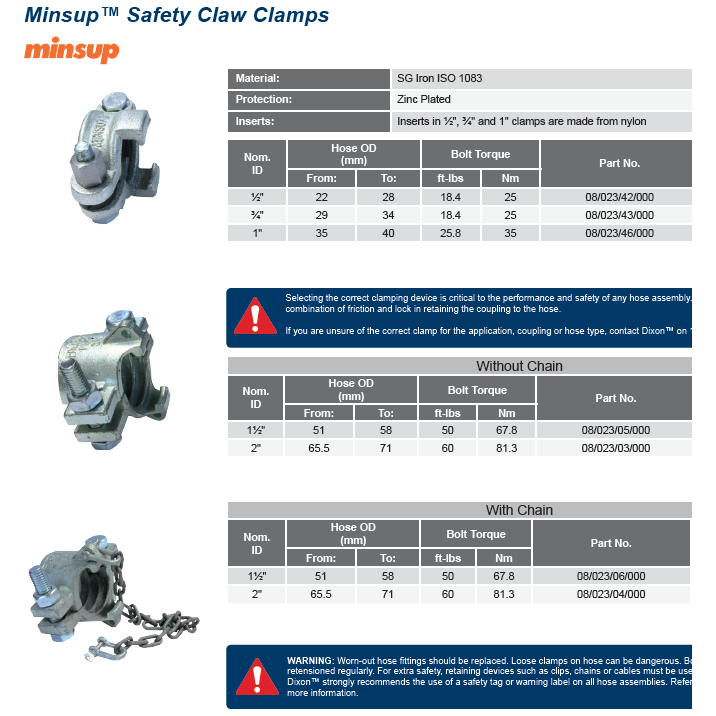

Materials
- SG Iron ISO 1083
- Zinc Plated to AS1789
- Inserts in 1/2”, 3/4” and 1” - Nylon
- Steel Zinc Plated bolts Grade 8.8
- Nuts S1214 Mild Steel Zinc Plated
Working Pressure:
- 1/2” to 1” - 500 psi max working pressure1 1/2” to 2” - 300psi max working pressure (when used with Minsup stems)
Notes
• Check hose OD to select clamp.
• Refer assembly procedure for correct installation.
• For use with Minsup stems
