Construction
- Body materials: Spheroidal graphite cast iron to ISO 1083; 400-250-15 SGI
- Handle: Pressed mild steel
- Seal: Nitrile Butadiene
- Ball & Stem: Spheroidal graphite cast iron to ISO 1083; Chrome copper plated to AS1192
- Bolts: Hex, M10 x 1.5 x 90, Grade 8.8, black
- Nuts: Hex, M10 x 1.5, zinc plated, Grade 8

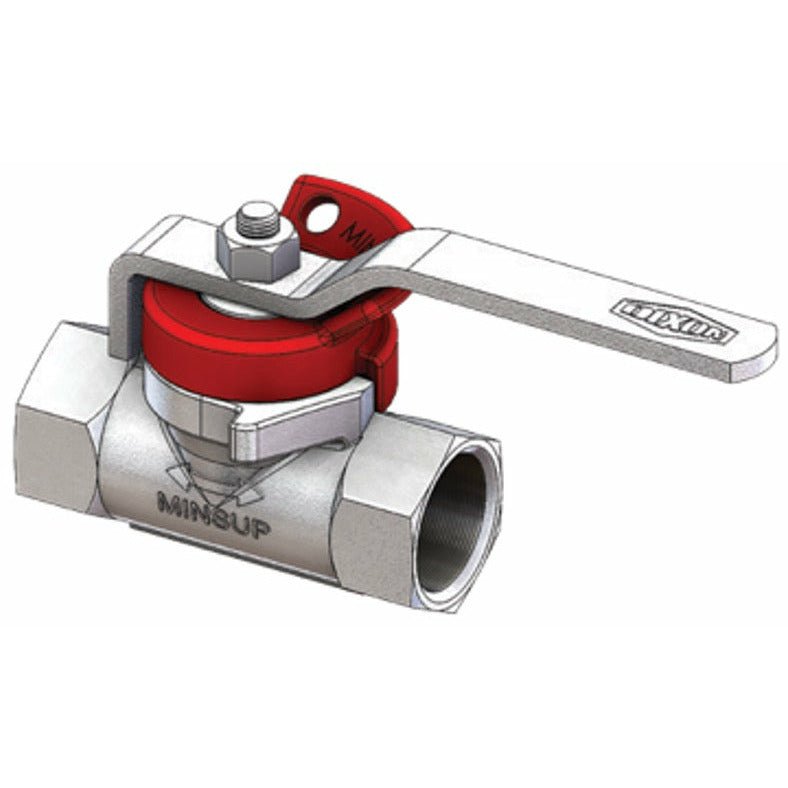

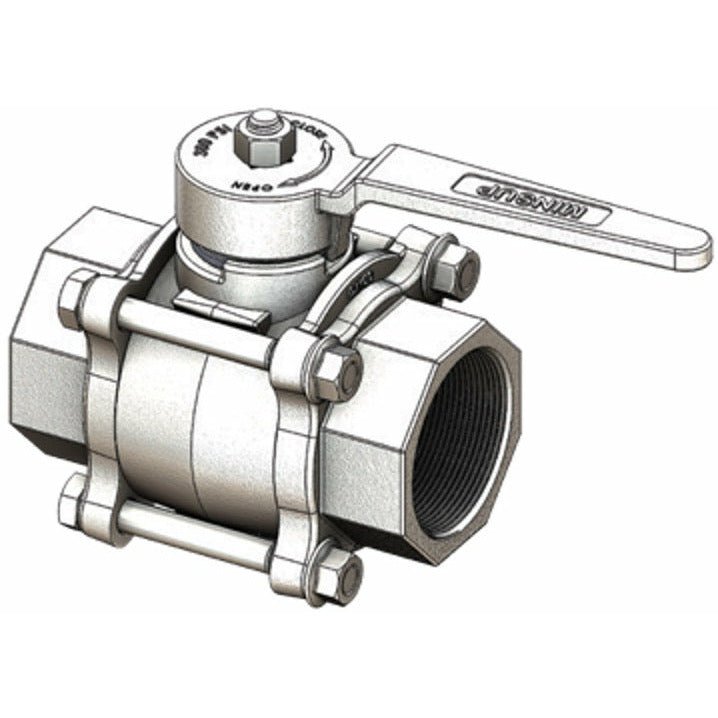

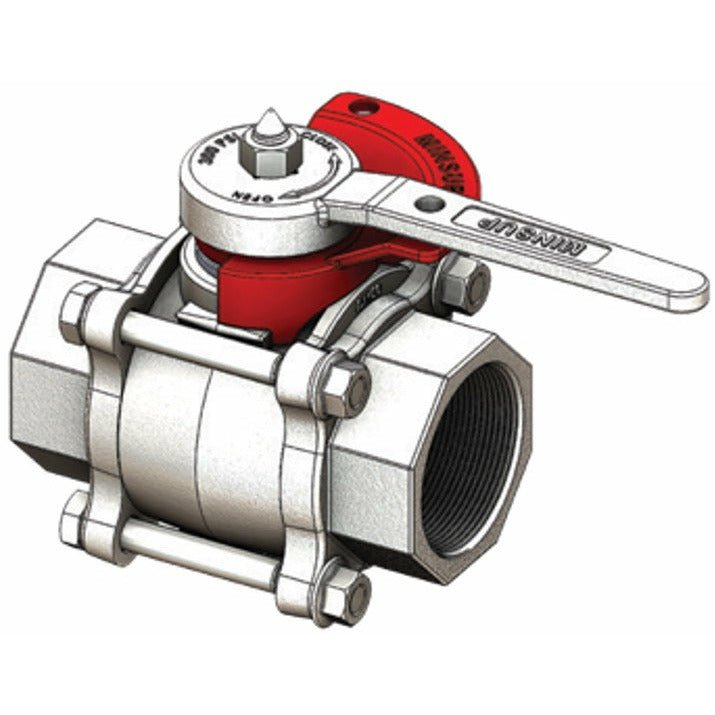

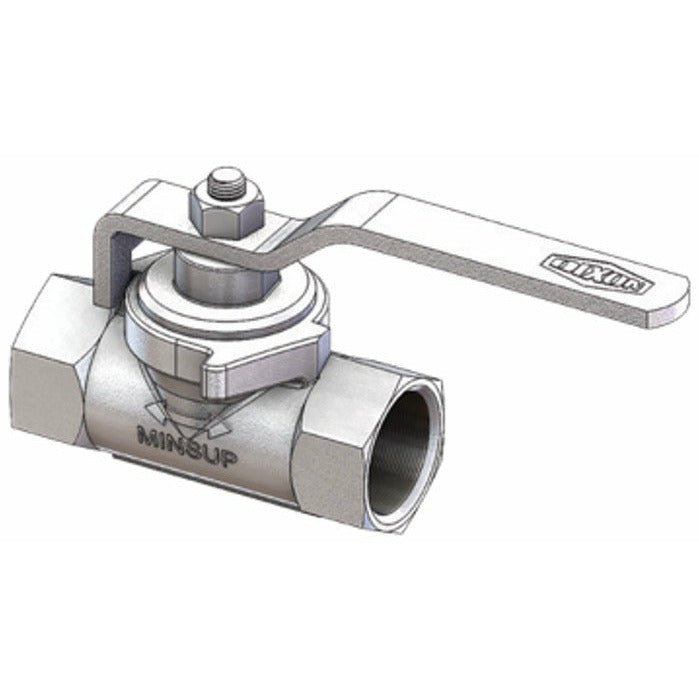

Description: Female BSP x Female BSP
Working Pressure: 500 PSI (3.4 MPa)
Temperature Range: -20°C to 80°C
Applications:
- General purpose ball valve suitable for mining and industrial applications.
Features
- Solid construction with unique one piece ball and stem provides positive on/off action.
- In-line maintenance is easy
