Minsup

HD08/062/110/00

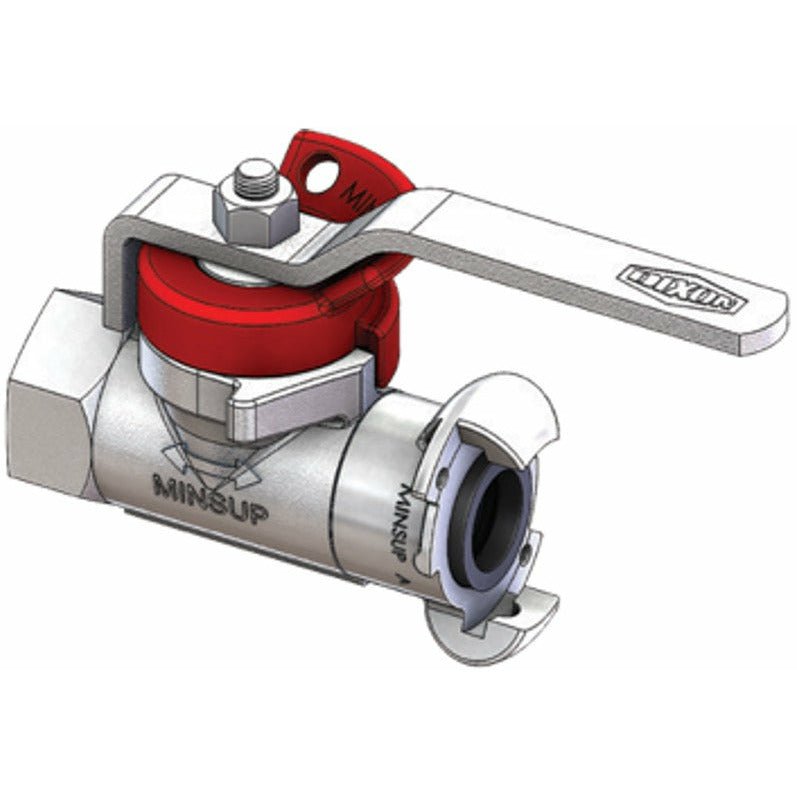

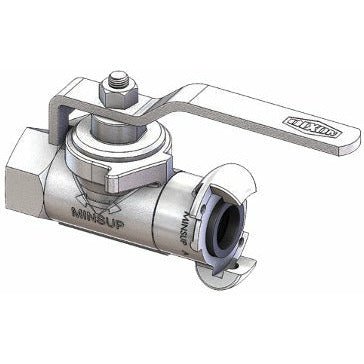

MINSUP Econovalve A-Type Ball Valve 1"

Add to Wishlist

Material:Cast Iron

Seat: Nitrile Butadiene

Size: 1"

Working Pressure: 500 PSI (3.4 MPa)

Temperature Range: -20°C to 80°C



Applications:
  • General purpose ball valve suitable for mining and industrial applications.

Features

  • Solid construction with unique one piece ball and stem provides positive on/off action.
  • In-line maintenance is easy

Construction

  • Body materials: Spheroidal graphite cast iron to ISO 1083; 400-250-15 SGI
  • Handle: Pressed mild steel
  • Ball & Stem: Spheroidal graphite cast iron to ISO 1083; Chrome copper plated to AS1192
  • Bolts: Hex, M10 x 1.5 x 90, Grade 8.8, black
  • Nuts: Hex, M10 x 1.5, zinc plated, Grade 8
