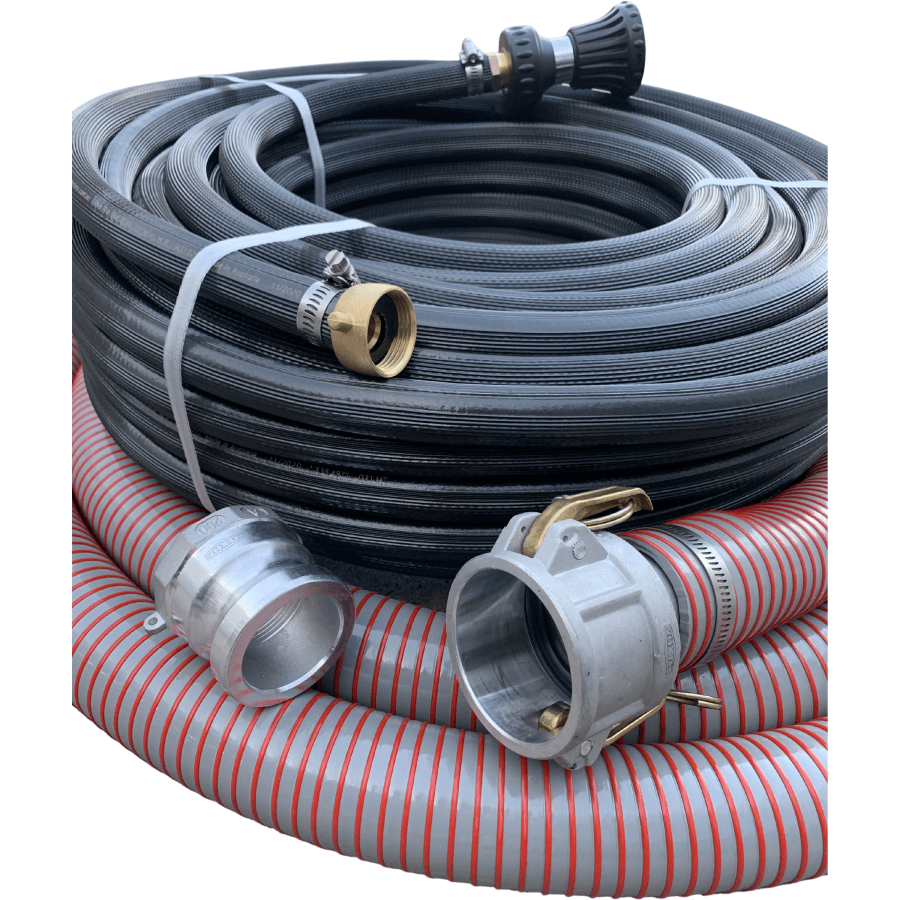

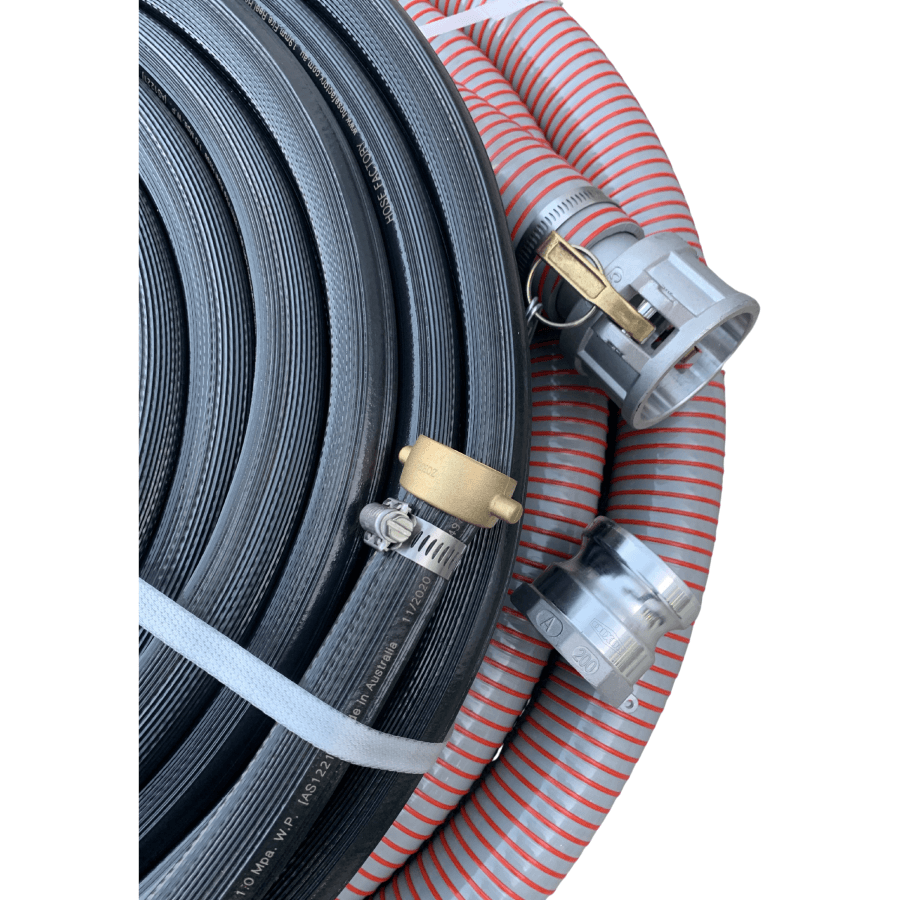

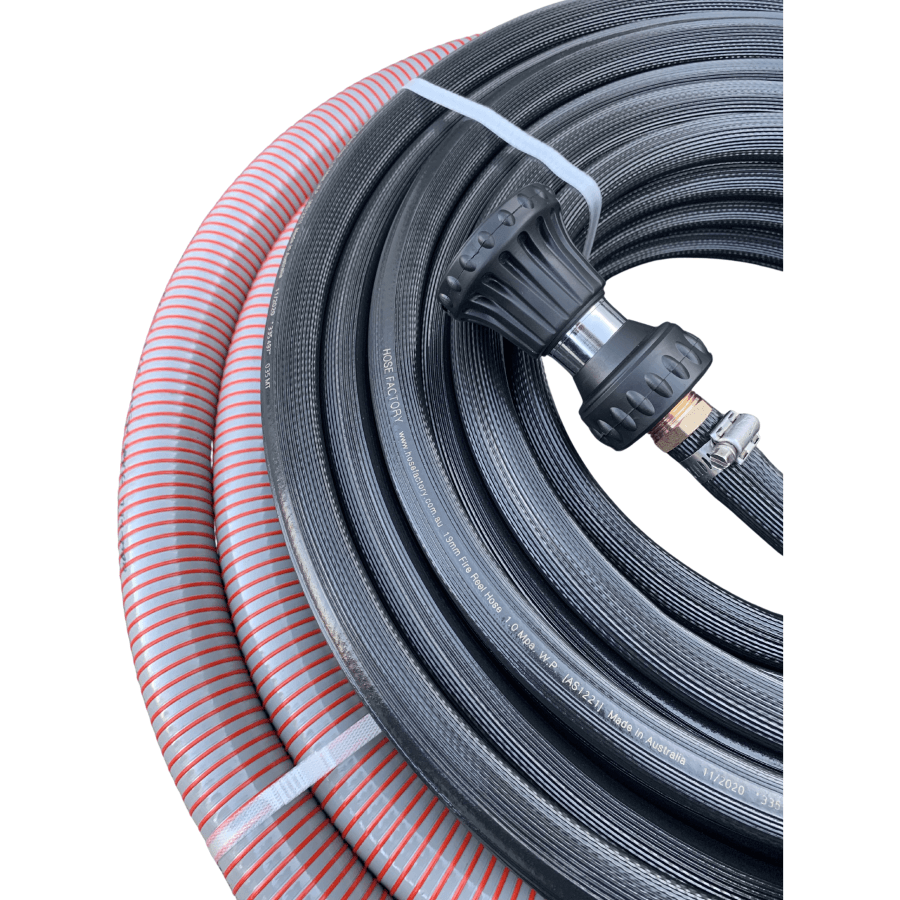

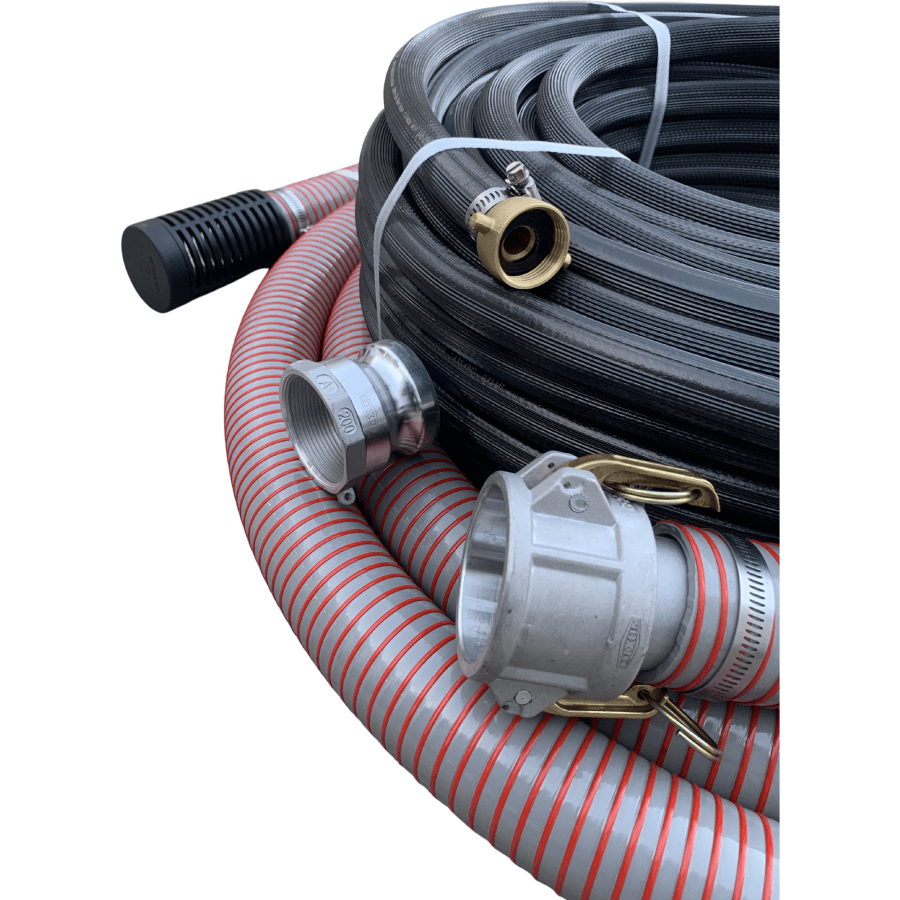

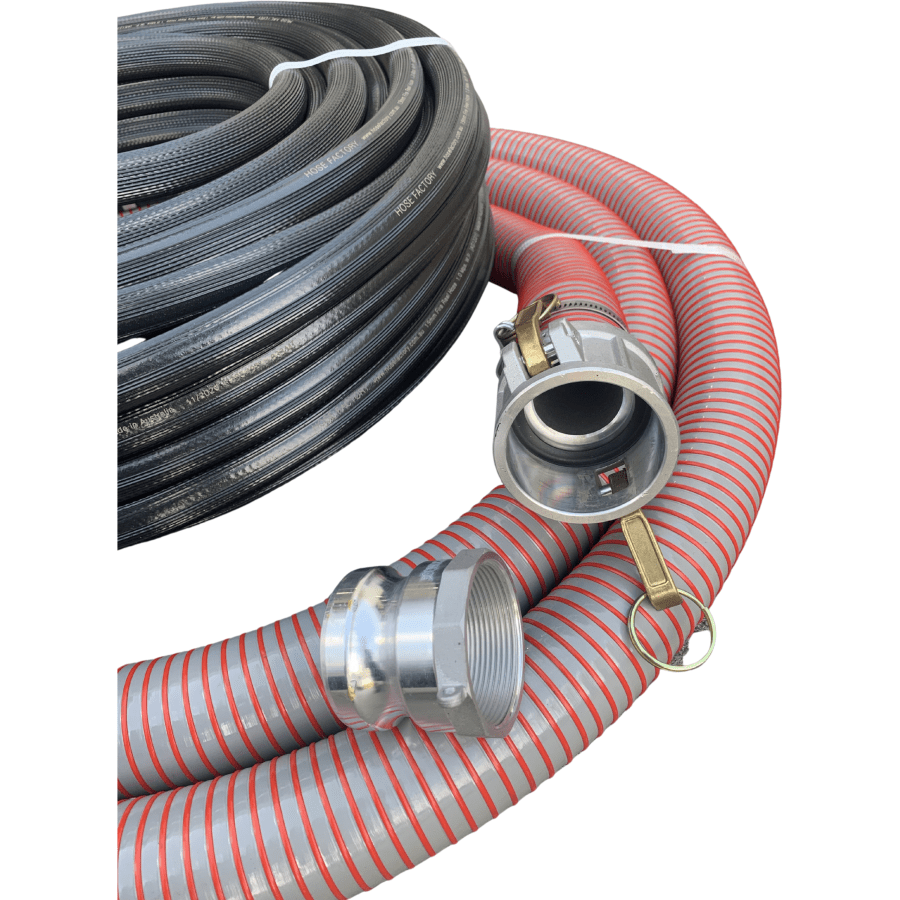

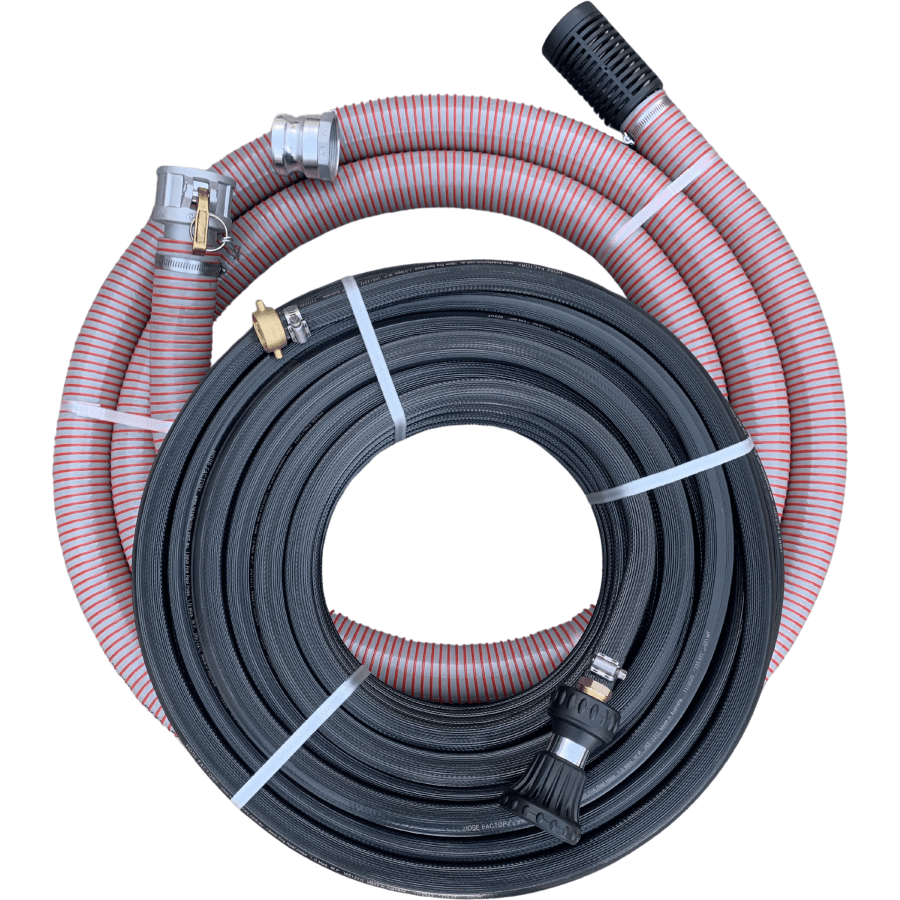

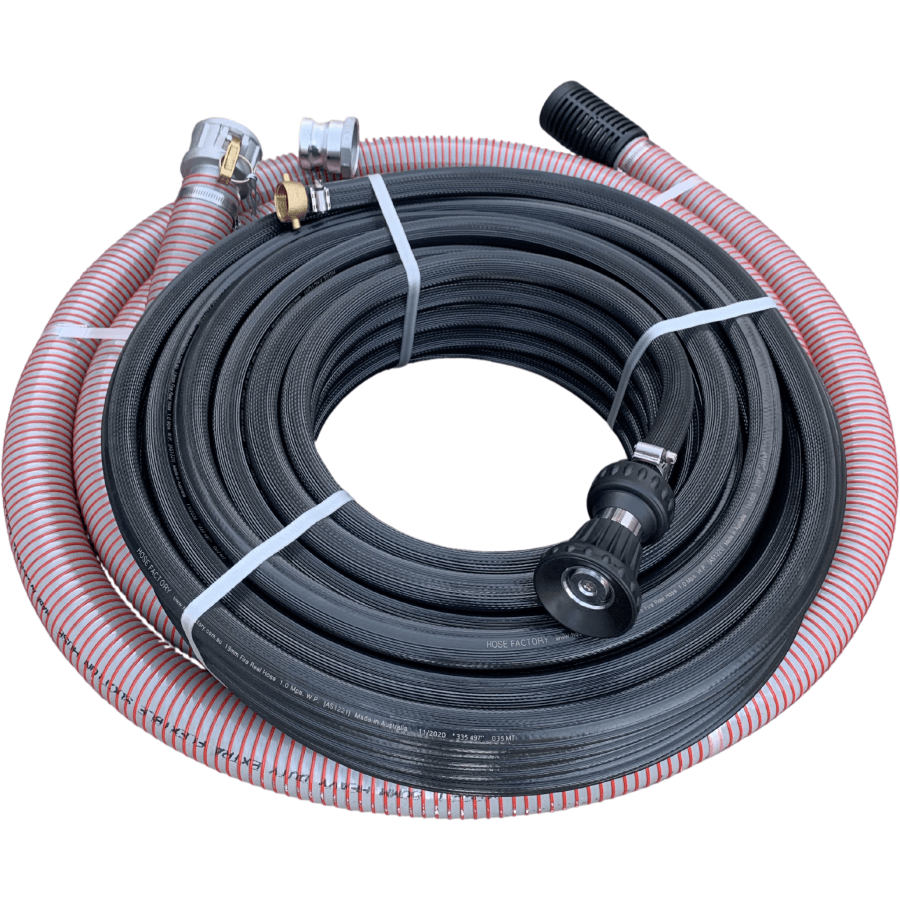

HOSE FACTORY FIRE HOSE DELIVERY KIT
Inner diameter:19.25mm [3/4"]
Outer diameter:26.25mm
Maximum working pressure:145 PSI
Minimum burst pressure:580 PSI / 4 MPa
Inner core: Black PVC with a smooth finish.
Reinforcing: High tenacity polyester yarn.
Outer cover: UV stabilized black PVC with a ribbed finish.
Black PVC pressure hose suitable for use on fire reels. This hose has a
ribbed outer for high abrasion resistance.
This hose can also be used for Chemical spraying.
- 1 X Female Brass 1" Nut & 3/4" Tail
- 1 X Zorro Heavy Duty Fire Nozzle with 3/4" Brass Hose Tail Adaptor
- 2 X Dixon Stainless Steel Wormdrive Clamps
-
Excellent UV resistance.
-
Outstanding flexibility.
-
Excellent abrasion resistance.
-
Complies to Australian StandardAS1221
-
Manufactured with a 4:1 safety factor (burst pressure is four times greater than working pressure).
- Made in Australia

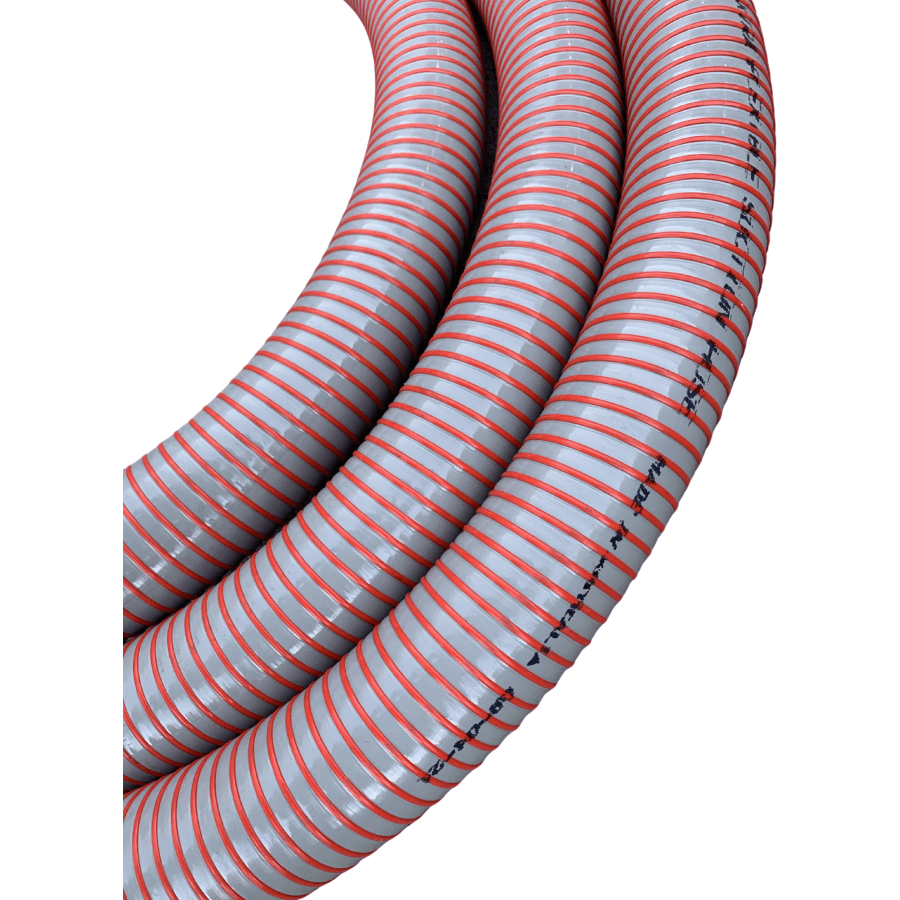

BARFELL SUCTION HOSE
Inner Diameter: 38 mm
Outer Diameter: 46 mm
Working Pressure: 90 PSI
-
General water and mild chemical suction applications
-
Airseeder and material transfer applications
-
Excellent blend of economy and quality
-
Smooth inner wall prevents blocking
-
Heavy duty thick wall construction
-
Kink Resistant
-
Temperature range-20° C to +55° C
-
UV stabilised
- Made in Australia
Features:
- Camlock coupling connection to inlet of pump, allowing for quick connection of hose to pump when you need it. No washers to lose or threads to cross.
- Durable Polypropylene strainer
The kit contains:
- PVC suction hose
- 1 x 1 1/2" TYPE C Female aluminium camlock with hosetail
- 1 x 1 1/2" TYPE A Male aluminium camlock with female BSP thread
- 1 x 1 1/2" polypropylene hose strainer
- 2 x Dixon stainless steel wormdrive clamps
