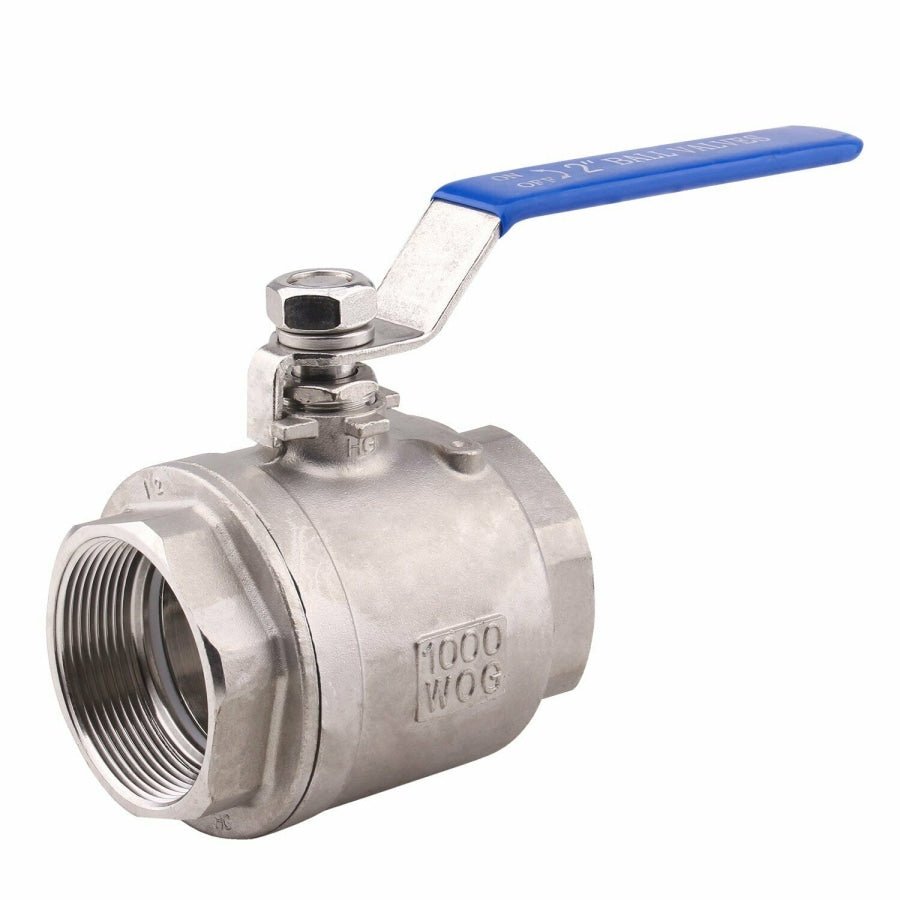

Hose Factory BALL VALVE Full Bore 316 Stainless Steel BSP 25mm

Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

Stainless Steel 2 Piece Ball Valve

Description: Ball Valve, manual control used for water pipe networks. For Chemical and Industrial applications,

FEATURES

  • 2 Piece investment casting body and cap
  • For use in water, oil and gas
  • Full port with threaded BSP ends
  • Pressure rating 6890 kPa - PN63
  • Temperature range -250C - 1800C
  • Made with and approved to ISO9002 Standards

SPECIFICATIONS

  • Body & Ball stainless steel 316 Grade
  • Handle stainless steel 316 Grade
  • 1" (25MM)
  • Seals & Seat - PTFE
  • Body Gasket - PTFE
  • Cap stainless steel 316 Grade+
  • Stem stainless steel 316 Grade
  • Thrust washer - PTFE
  • Stem packing - PT
  • Gland nut stainless steel 316 Grade
  • Spring washer stainless steel 316 Grade
  • Nut stainless steel 316 Grade
  • Lock plate stainless steel 316 Grade
  • Handle cover - Plastic
