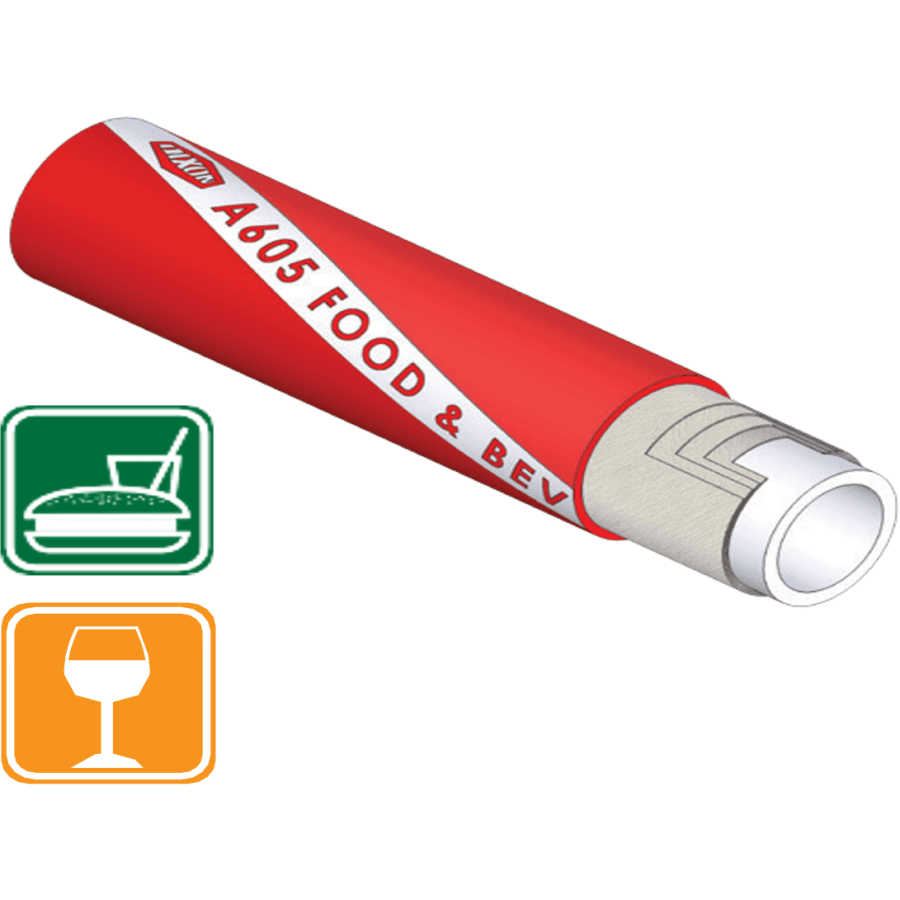

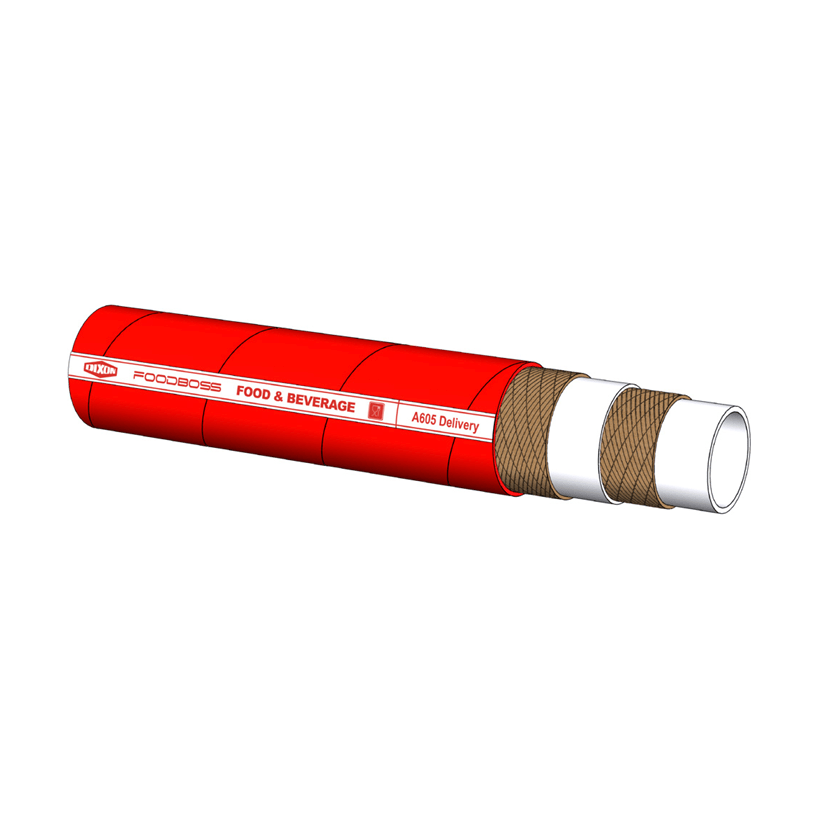

HD-A605025
Applications
A superior quality hose, mandrel built, suitable for conveying beer, wine, vinegar, soft and alcoholic drinks, potable water and any other foodstuff when a food quality hose is required.
Tube:
White, smooth, food quality synthetic rubber, meets FDA and European Requirements. NR
Reinforcement: High strength synthetic cord
Cover: Red, smooth (wrapped finish) long lasting synthetic rubber, abrasion resistant, EPDM
Temperature: -35°C to 70°C
Special Features:
Dimensions (mm) | Working Pressure | BP PSI | Bend Radius (mm) | Weight kg/mtr | ||||||||||||
ID | OD | PSI | MPa | |||||||||||||
25 | 34 | 150 | 1 | 435 | 254 1 | 0.54 | ||||||||||
38 | 51 | 150 | 1 | 435 | 456 1 | 1.30 | ||||||||||
51 | 65 | 150 | 1 | 435 | 612 1 | 1.71 | ||||||||||
76 | 92 | 150 | 1 | 435 | 912 1 | 2.45 |
