DIXON A430 Rubber Petrol & Oil Suction & Delivery Hose

Size
Length
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

Applications

Specially designed for the use on hydraulic systems such as oil return hose; can also be used for suction and discharge of various petroleum products with maximum 50% aromatic content. Used for wet exhaust applications.

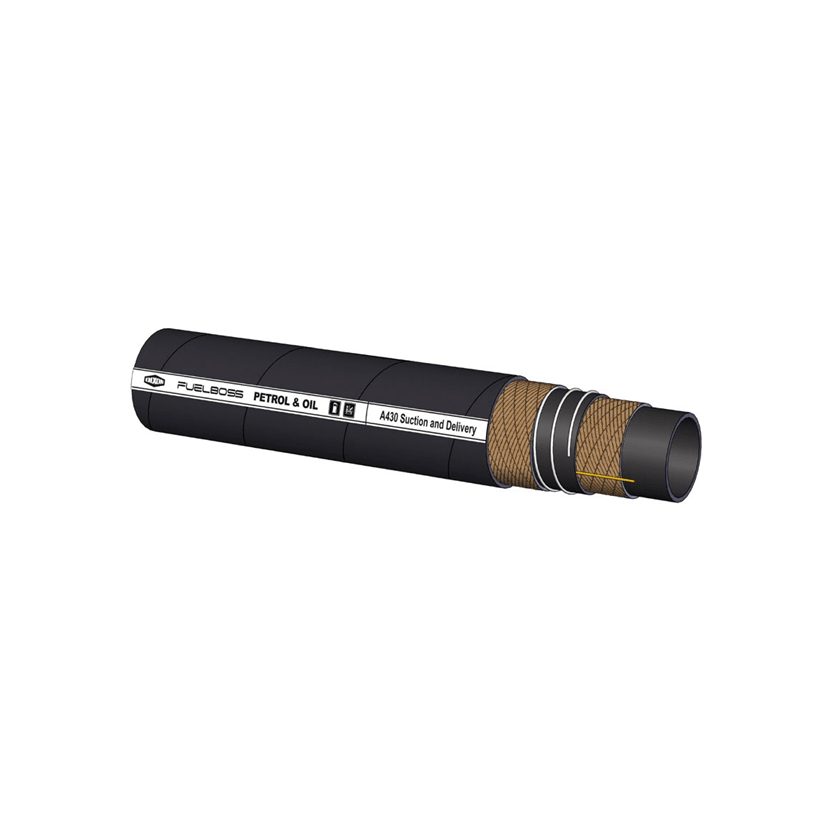

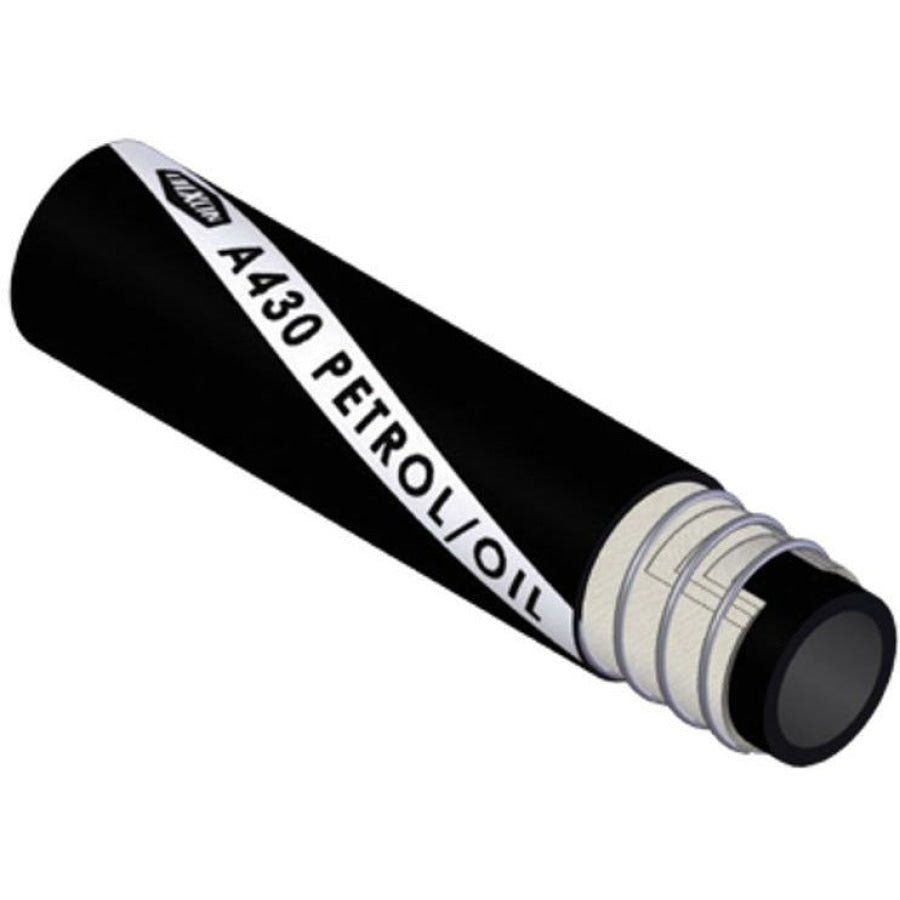

Construction

Tube: Black, nitrile
Cover: Black, smooth (wrapped finish), synthetic rubber, abrasion, weather and oil mist resistant
Reinforcement: High strength synthetic cord plus wire helix and anti-static copper wire

Dimensions (mm) Working Pressure BP PSI Bend Radius (mm) Weight kg/mtr Vacuum (m.H20)
ID OD PSI MPa
19 30 150 1 435 80 0.69 9
22 32 150 1 435 90 0.80 9
25 35 150 1 435 105 0.87 9
32 43 150 1 435 135 1.12 9
35 46.5 150 1 435 150 1.21 9
38 49.5 150 1 435 165 1.42 9
42 54 150 1 435 195 1.50 9
45 57 150 1 435 205 1.60 9
48 62 150 1 435 215 1.72 9
51 63 150 1 435 230 1.87 9
55 68 150 1 435 250 2.05 9
60 73 150 1 435 275 2.48 9
63 78 150 1 435 290 3.15 9
70 83 150 1 435 330 3.48 9
76 89 150 1 435 360 3.85 9
90 105 150 1 435 440 4.22 9
102 118 150 1 435 515 5.30 9
