Dixon

HD-A210100F

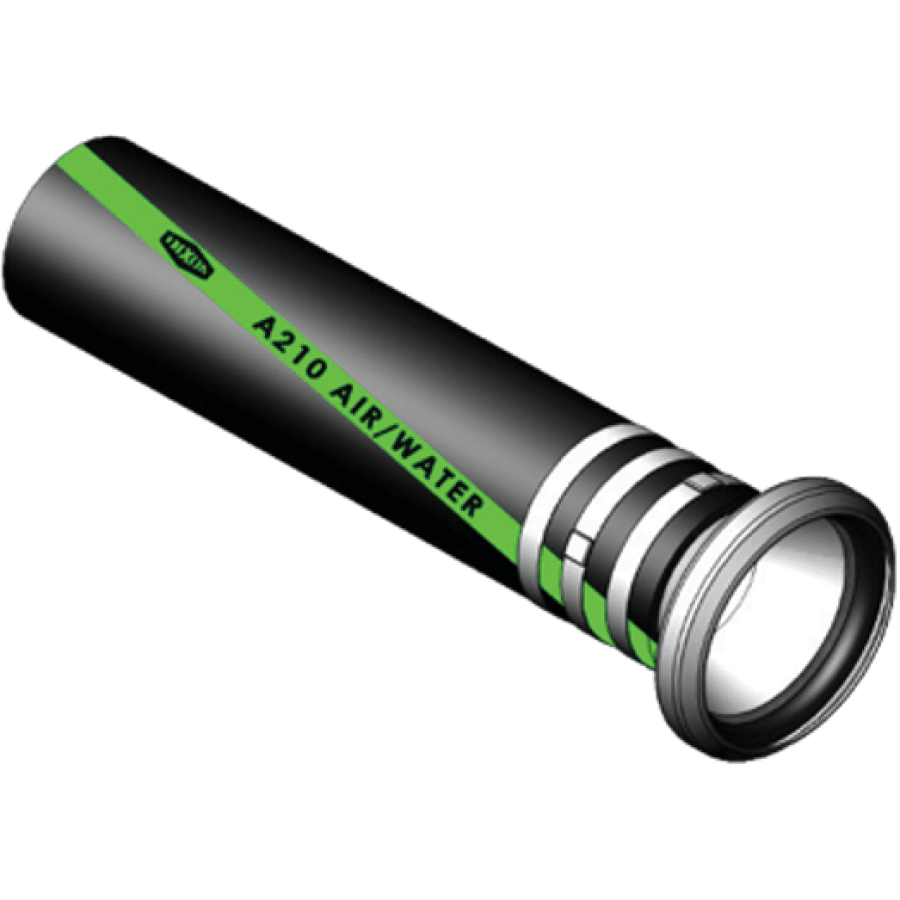

DIXON A210 Rubber Heavy Duty Air & Water Suction & Delivery Hose Assembly

Size
Length
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

Applications

  • Heavy Duty hose for suction and delivery services of air, water, waste, mud mining, construction, refineries, dewatering

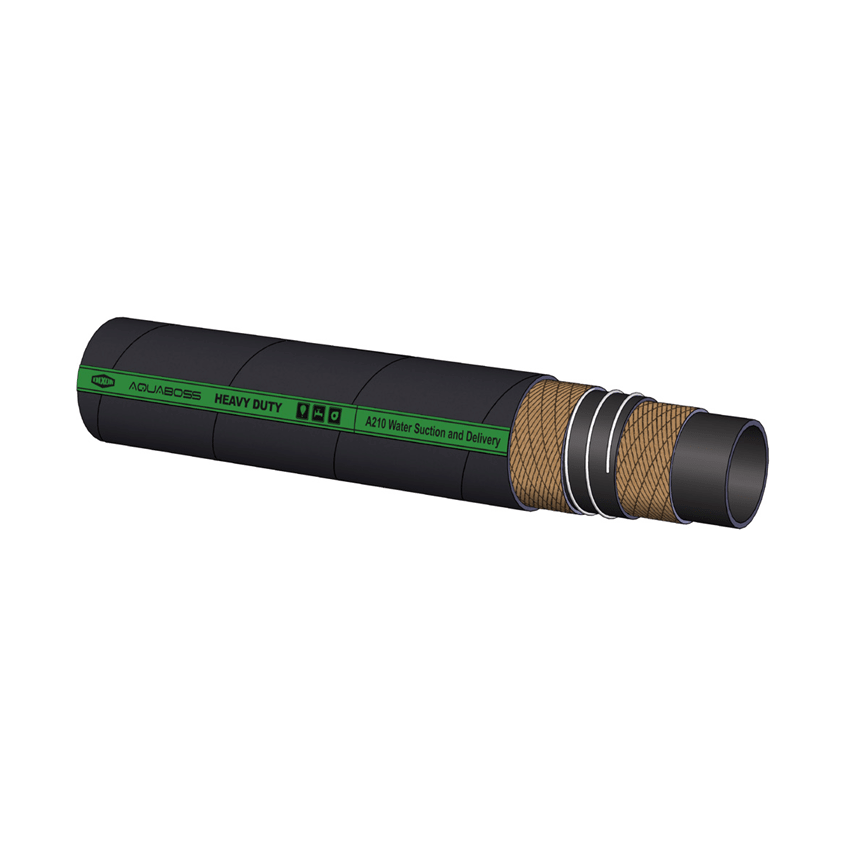

Construction



Tube: NR/SBR
Reinforcement: Textile reinforcement and steel wire helix
Cover: Black smooth (wrapped finish), EPDM rubber, ozone and weathering resistant

    Temperature:-25°C to 70°C



    Special Features:

    • All fittings are secured with ultra-lock band clamps. Abrasion resistant
    • Suitable for suction and open ended delivery.
    • Fitted with Bauer couplings

    I.D. Sizes: 100mm-200mm

    Assembly WP: Working pressure will vary depending on size, fitting and clamp selection.

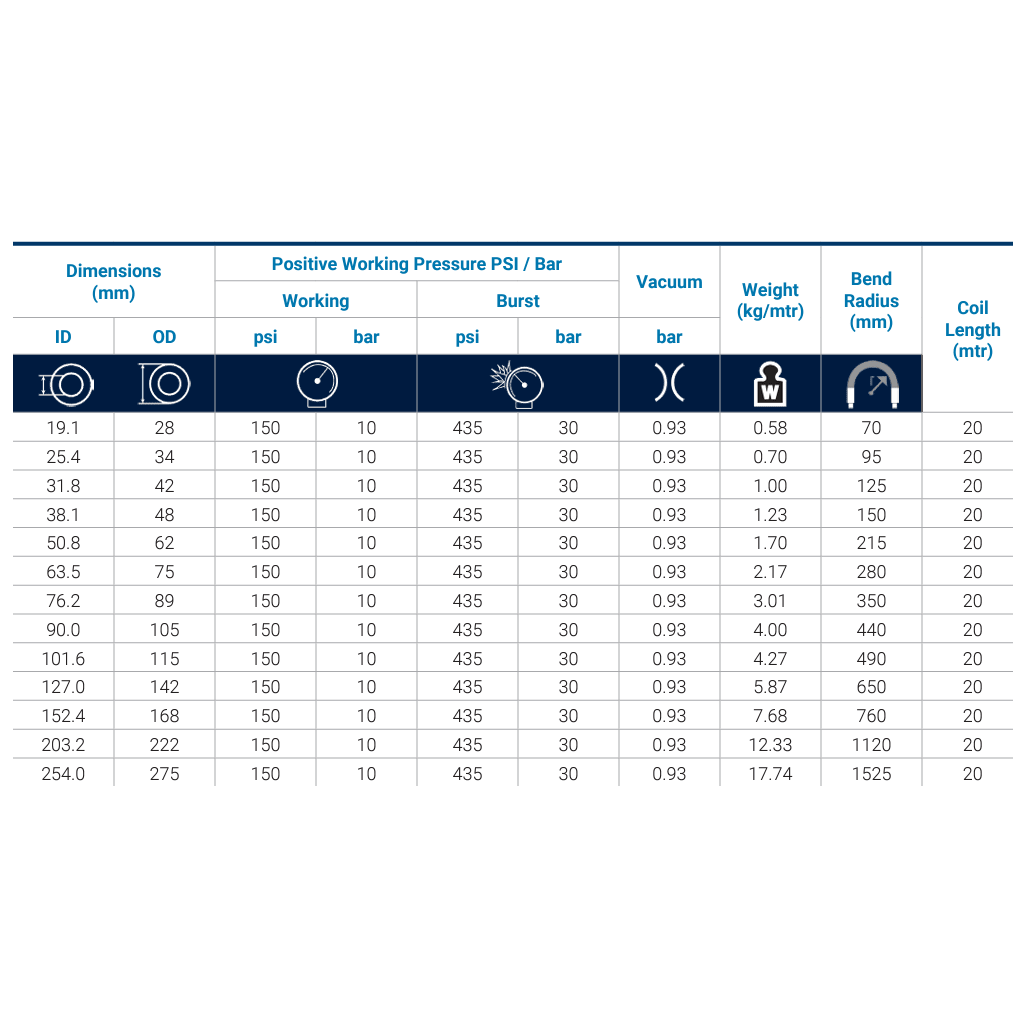

    Hose I.D.

    (mm)

    Length (m) Bend Radius (mm) Vacuum (m.H20) Assembled with
    100
    6 711 9 100mm Std Male & Female Bauer Couplings
    150 3 1067 9 150mm Std Male & Female Bauer Couplings
    200 3 1421 9 200mm Std Male & Female Bauer Couplings
