BARFELL Light Weight Flexible FDA Food Grade Suction & Delivery Hose

Size
Length
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

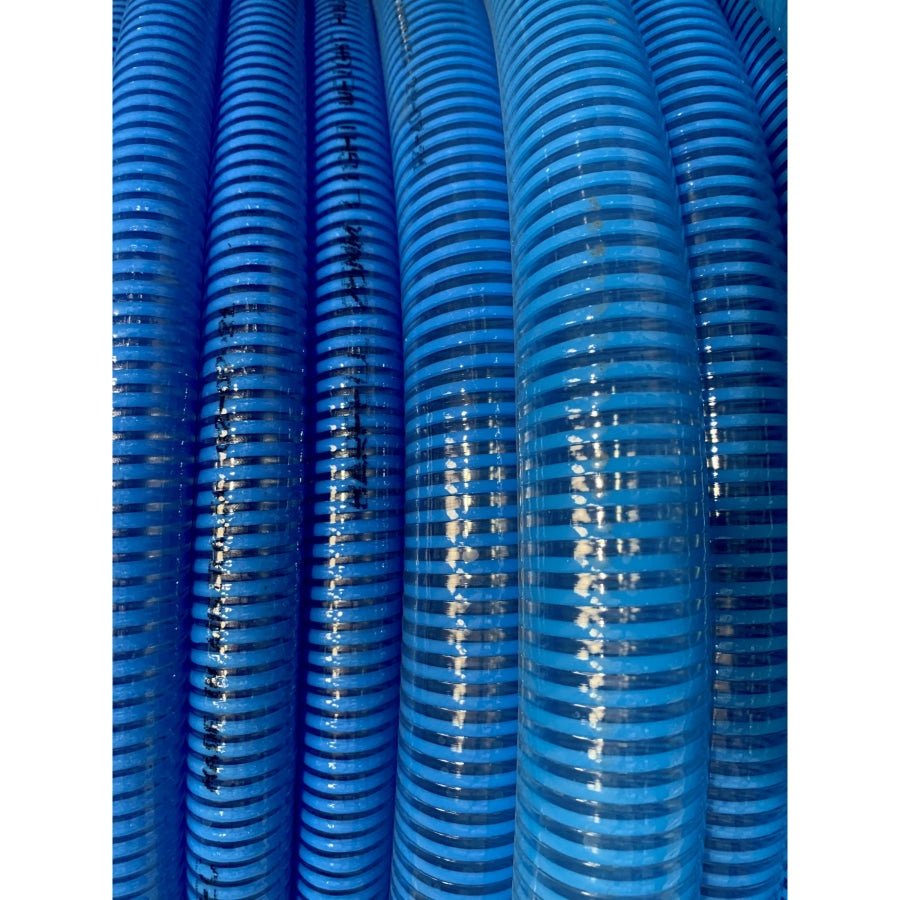

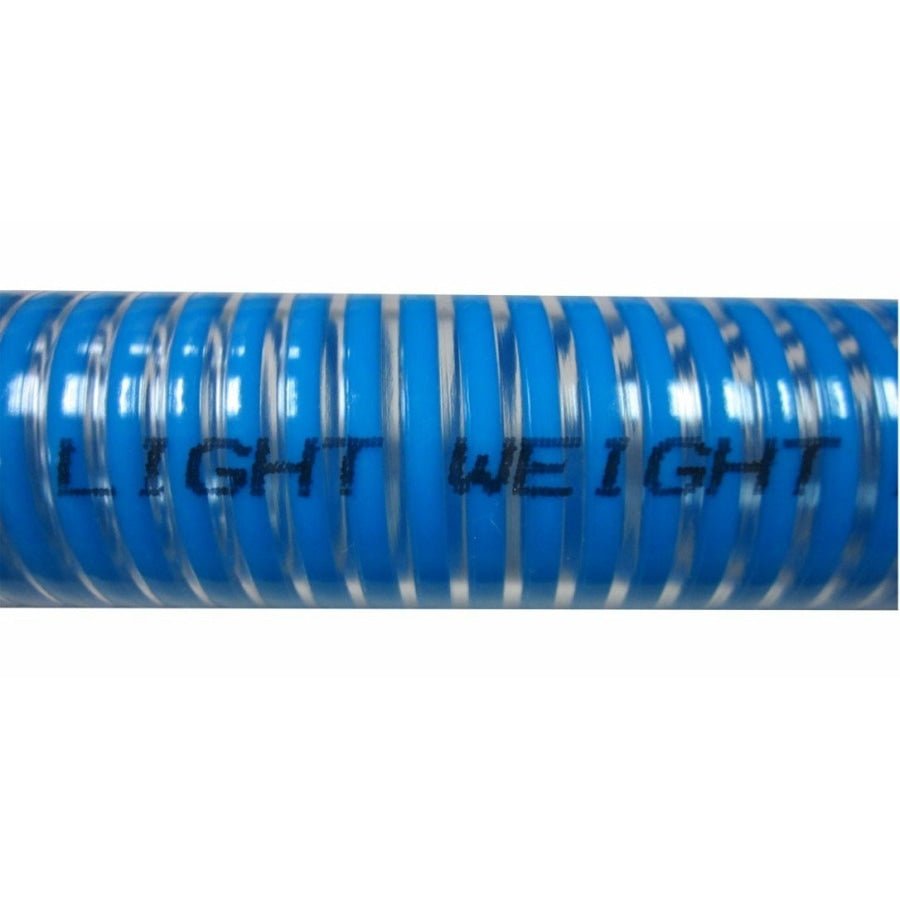

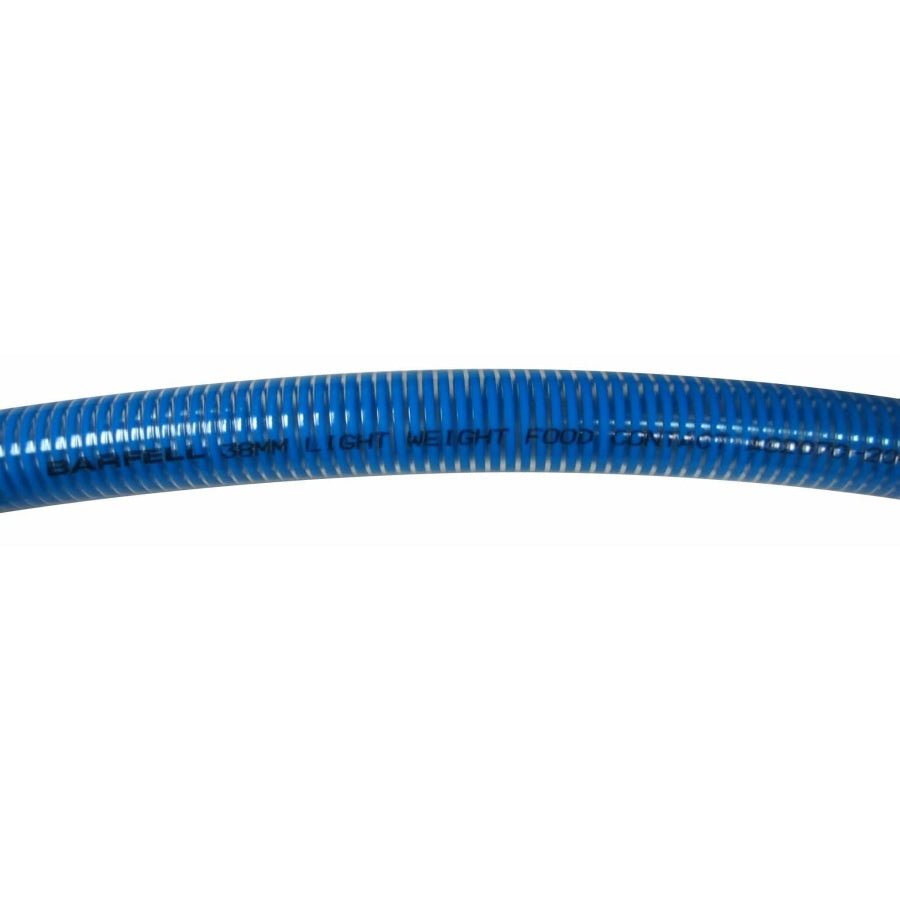

A medium duty flexible Food Grade PVC suction/discharge hose reinforced with a Rigid PVC spiral. It has a mirror smooth bore for ease of cleaning & to minimise friction losses.

The materials used in the manufacture of this product meet the requirements of AS2070 & FDA plastic materials for food contact use, and have been tested to European std 2002/72/EC which in addition to the standards above also covers product testing for plastizer migration.

Applications:

Suitable for the transfer of most food grade products where there is a requirement for the hose material to meet FDA requirements. It is light weight and extremely flexible. It is also an excellent medium duty general purpose suction and delivery hose.

FEATURES:

FOOD CONTACT Suction hose

Light weight and Flexible

Colour: Clear with a Light Blue Rigid Spiral

Temperature range: -5C to +60C

Chemical Resistance: Good

Flexibility: Excellent

Abrasion Resistance: Good

MEETS EU 2002-72-EC AND AS2070 STANDARDS

Made in Australia

I.D. Wall Thickness O.D. (Nom.) Working Pressure @ 20degC   Vacuum Rating Weight / Mtr Min. Bend Radius
(mm) (mm) (mm) (Mpa) (PSI) (-Kpa @ 20degC) (Kg) (mm)
19 2.8  24.9 0.7 100 -90 0.24 55
25 2.9  31.0 0.7 100 -90 0.37 75
32 3.0  37.8 0.7 100 -90 0.44 100
38 3.4  45.2 0.6 85 -90 0.56 140
44 3.7  51.8 0.6 85 -90 0.67 160
50 4.0  58.8 0.5 70 -90 0.85 200
63 4.3  72.3 0.5 70 -90 1.176 240
76 4.8  85.6 0.4 55 -90 1.42 350
102 6.0  114.2 0.4 55 -90 2.52 400
