Barfell

HB-201560D-10

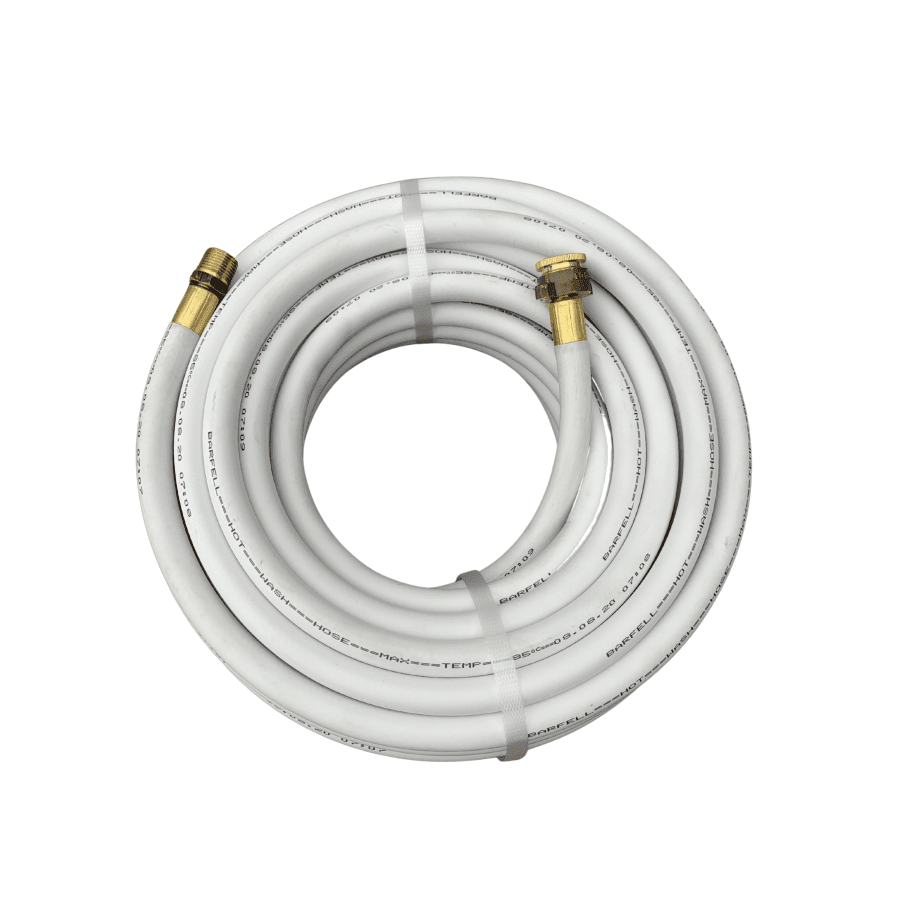

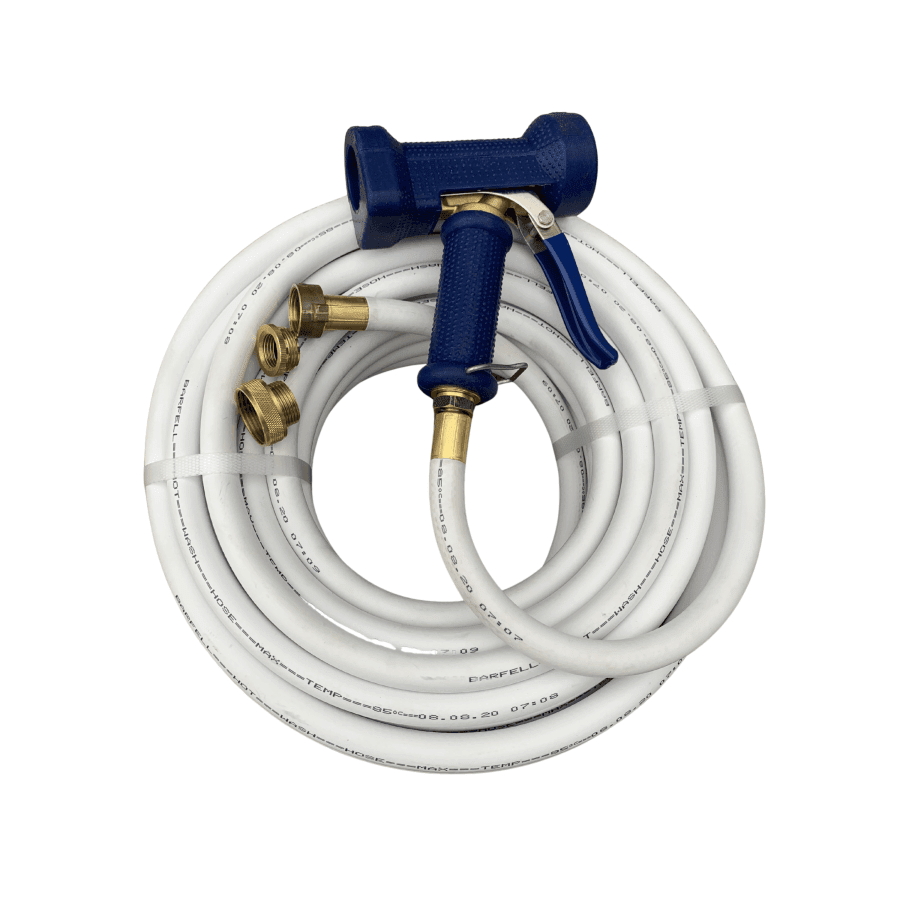

BARFELL High Pressure Hot Water Hose Brass Fittings Dixon Gun 12mm

Size
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates


Inner Diameter: 12.5 mm (1/2")

Outer Diameter: 19.7 mm

Maximum Working Pressure: 2.1 MPA (300 PSI)

Minimum Burst Pressure: 1200 PSI / 8.4 MPa

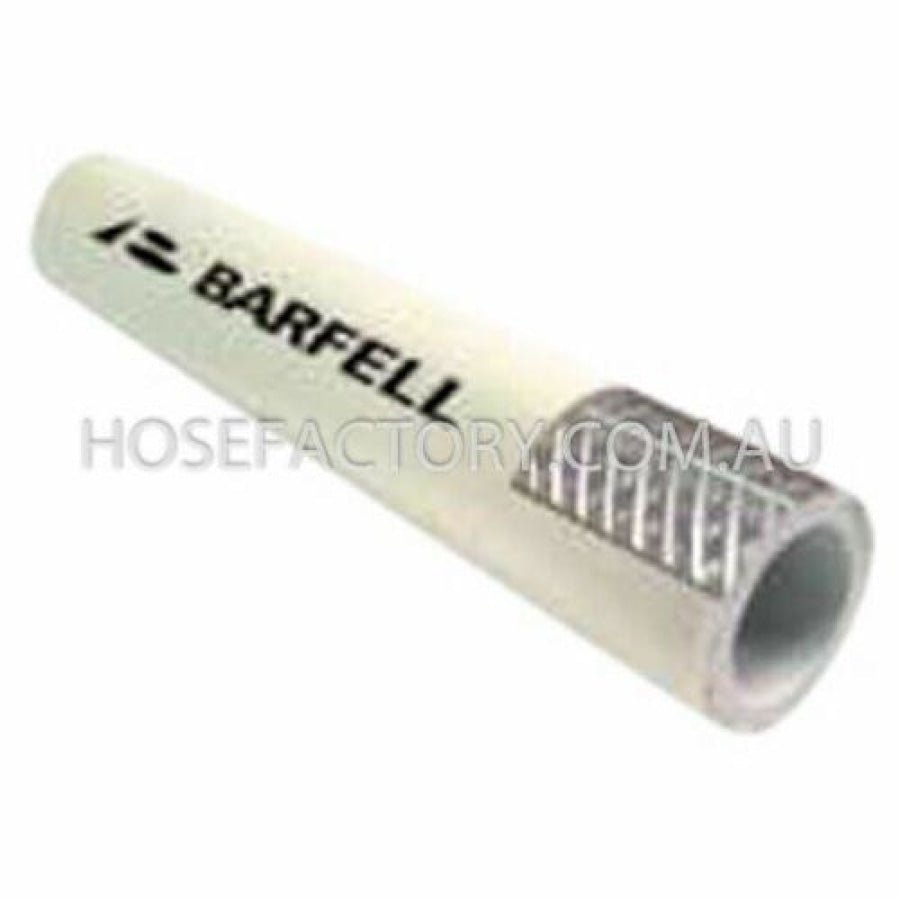

Description: Highest grade hose for hot washdown use in the food industry. The thermoplastic rubber smooth outer cover is highly resistant to lactic acid and fats

Construction: Inner wall white outer wall white with smooth TPR surface

Application: Hot washdown of all food preparation and retail areas, where milk, fats and other food products are present

Temperature Range: Rated to 85°C when used at low pressure

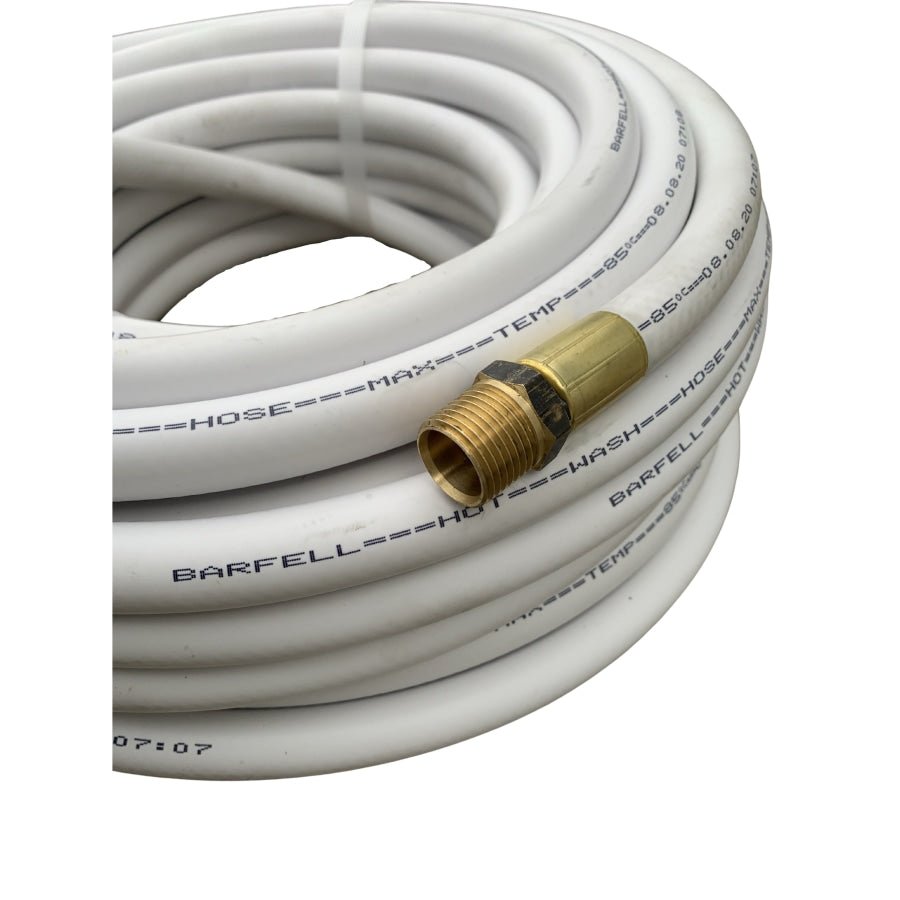

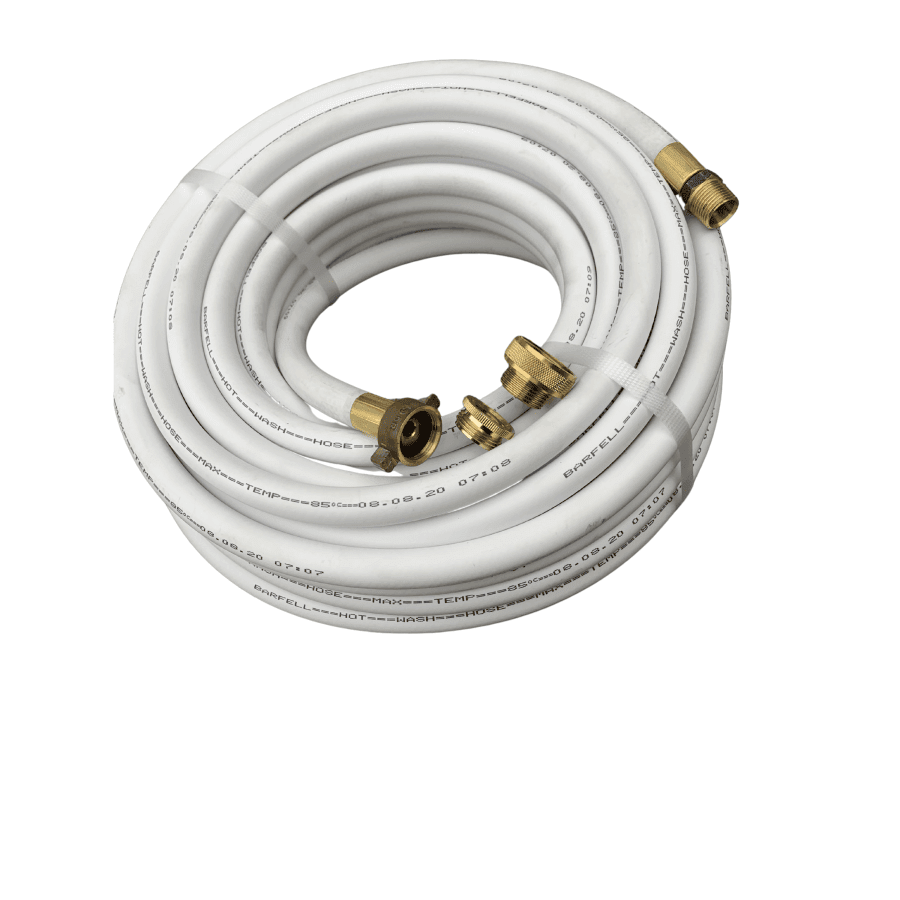

Barfell High temperature comes with crimped brass fittings which include:

  • 1 x Swivel Brass Nut and Tail
  • Suitable for tap sizes including 3/4" and 1"
  • 1 x 3/4” Bsp brass swivel male fitting
  • MADE IN AUSTRALIA

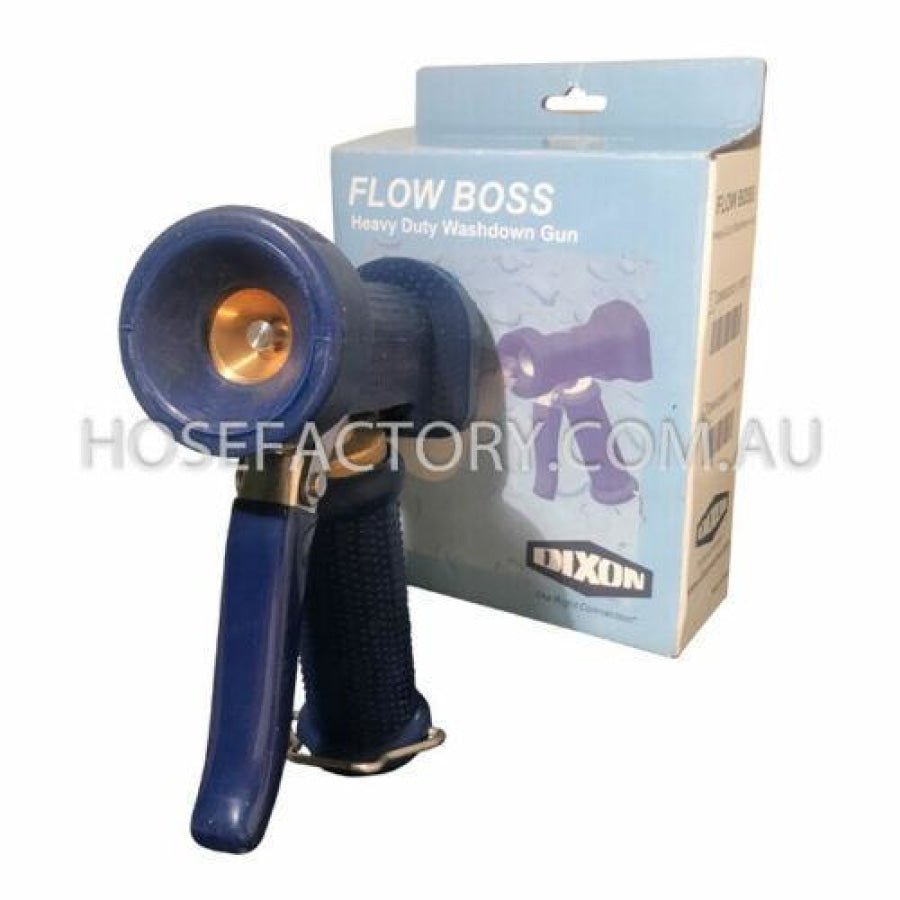

Dixon Flow Boss Heavy Duty Wash Down Gun

Applications

For low pressure cleaning and sanitation applications, such as food and dairy processing, tank and drum cleaning, pharmaceutical and chemical manufacturing and meat and poultry packing

Features

  • Ergonomic design for operator comfort.
  • Hollow cone spray pattern
  • Insulated cover for heat protection. Protects hands from water temperatures to 80°C.
  • High flow rate
  • Complete serviceability
  • Increased strength & durability
  • Upgraded seal design for superior pressure tightness
  • Hose connects at base of gun for easy MANOEUVRING
  • An adjusting screw on the back of the gun allows the jet to be altered to the desired pattern.

SPECIFICATIONS

  • Flow Capacity, 25 L/Min At 500 Kpa (6.6 GPM At 72 Psi)
  • Maximum Operating Pressure 2400kpa (350 Psi)

Construction

  • Rubber coated handle
  • All stainless steel & brass construction for superior corrosion resistance.
  • Blue rubber cover
  • Automatic shut off valve provides economical water consumption.
  • DIRECTIONAL ARROW ON TOP OF GUN PROVIDES VISUAL INDICATION OF WATER FLOW.
