Barfell

HB206000

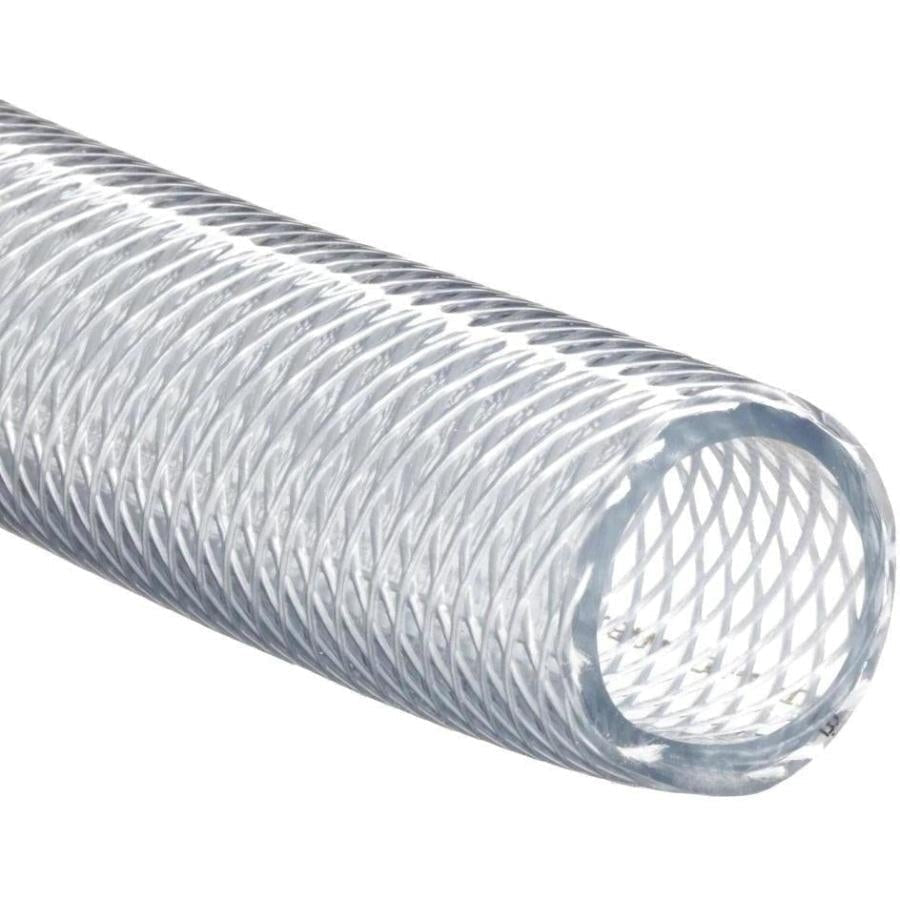

BARFELL Clearview SP Beverage Suction & Pressure Hose

Size
Length
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

Specifically designed to outperform all other hoses in the beverage industry. It is both a suction and pressure hose in one. It is UV light resistant, conforms to AS2070 and EU2022-72-EC for use with food products and uses a plastic helix that will not rust or cut the hands of operators.

Applications

Pressure or suction of any liquid or semi liquid that requires a food grade hose. Included are wineries, milk processing plants or tankers. Can be used with wine and spirits to28 1/4 proof.

Colour: Clear with Clear Rigid PVC Spiral

Temperature Range: -5°C to +60°C

Chemical Resistance: Excellent

Flexibility: Excellent

Abrasion Resistance: Excellent

Conforms to: Australian Standard AS2070, European Standard EU2002-72-EC, certified phenol free.

Made in Australia

Nominal in mm's

I.D.

Nominal in mm's

O.D.

Vacuum Rating

KPa/20℃

Working Pres.@ 20℃ Mpa P.S.I. Weight Kg/m Min Bend Radius in mm
25 35.4 -90.0 175 0.68 130
38 49.9 -90.0 175 1.01 220
51 64.4 -90.0 145
1.67
300
76.2 92.4 -90.0 145
2.57
490
