Barfell

HB206482

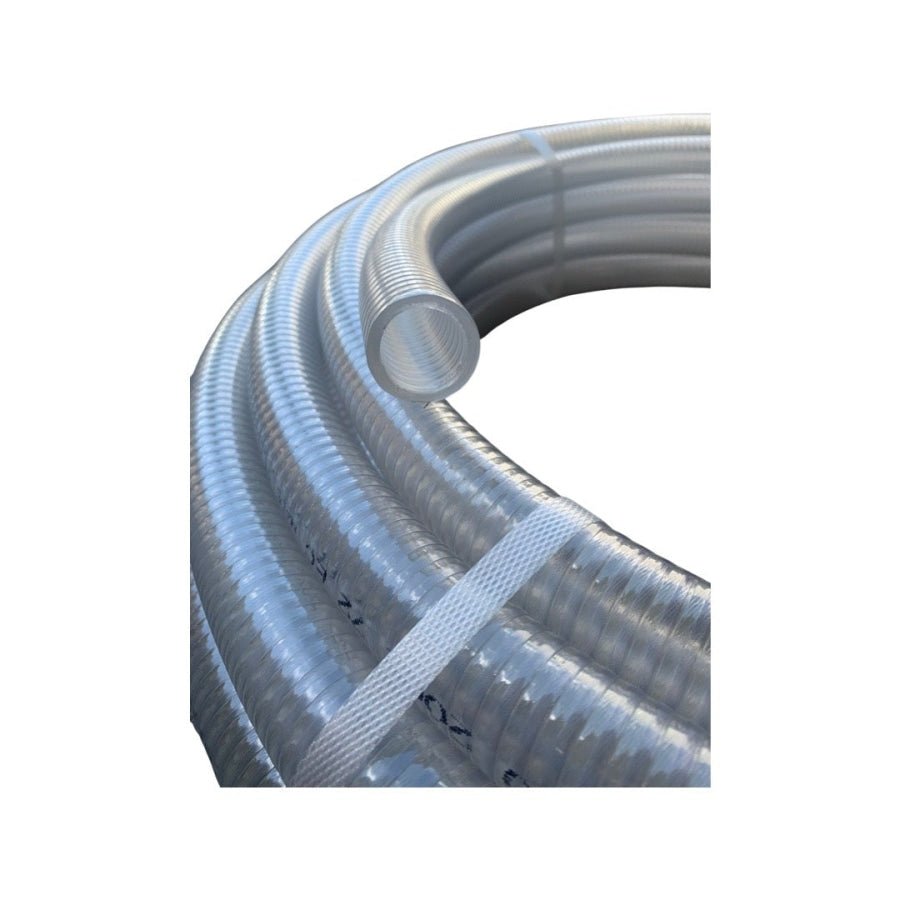

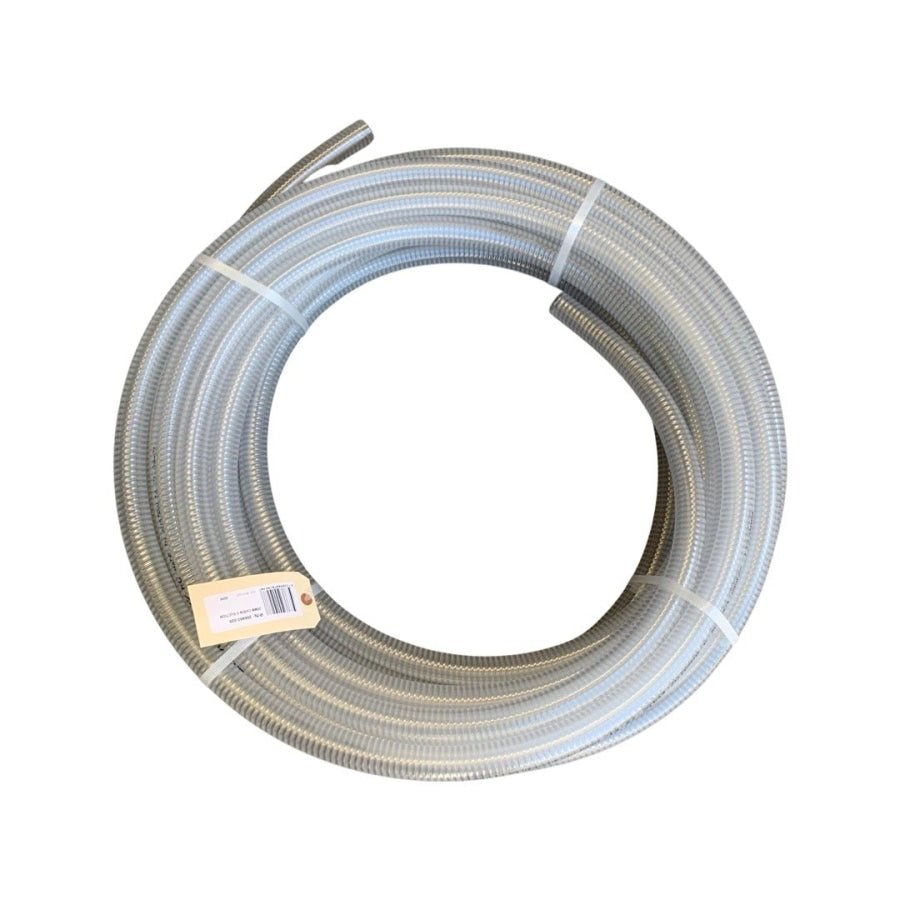

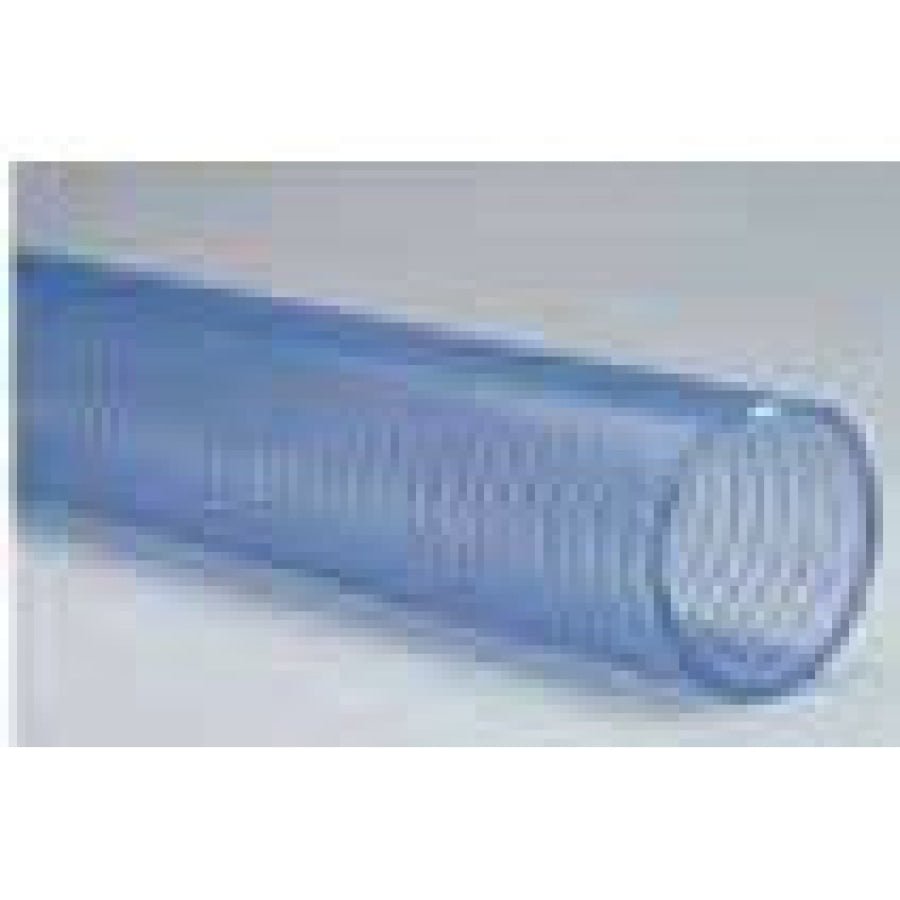

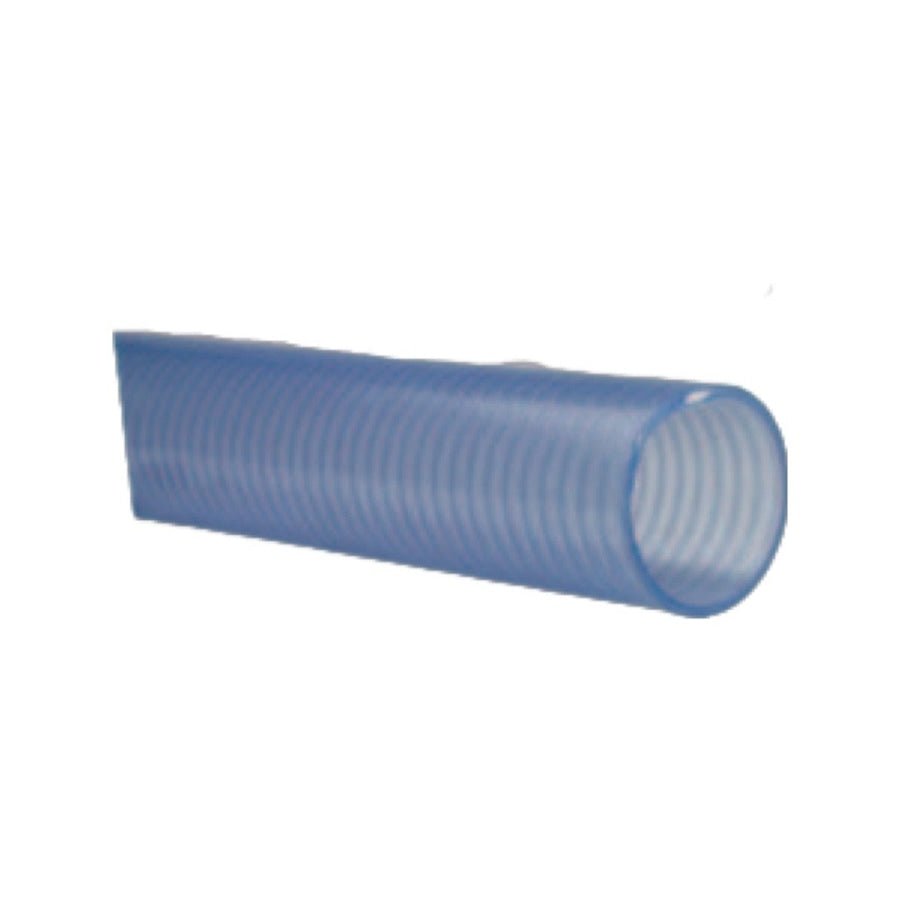

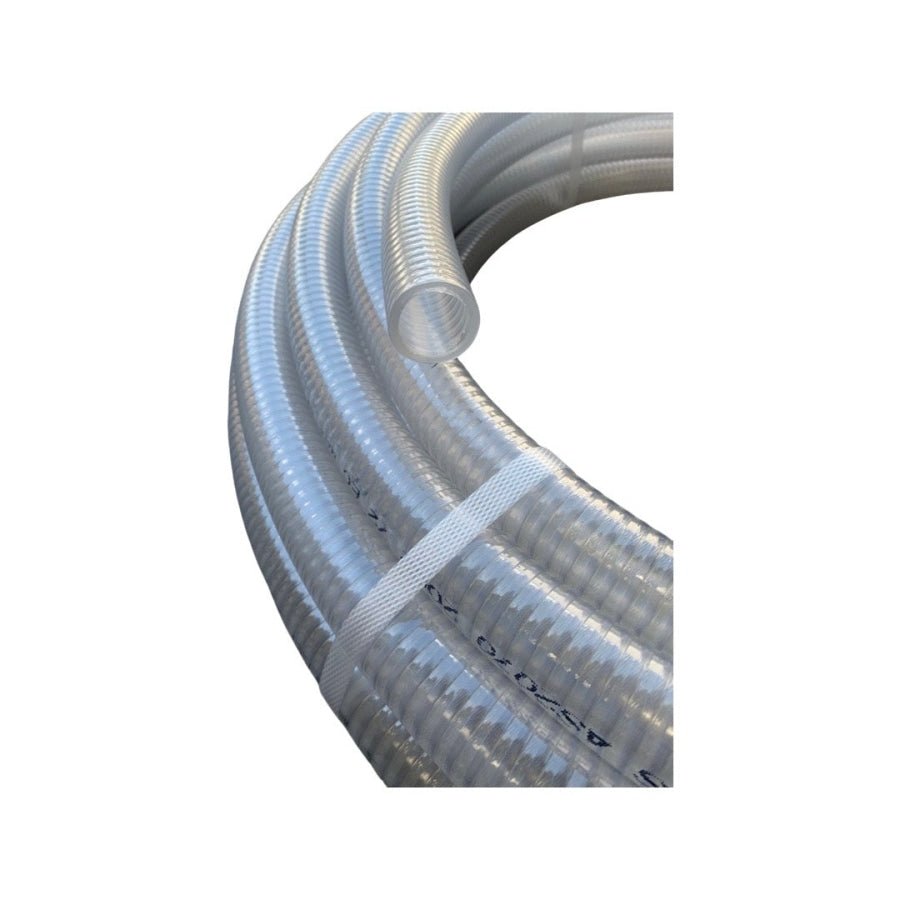

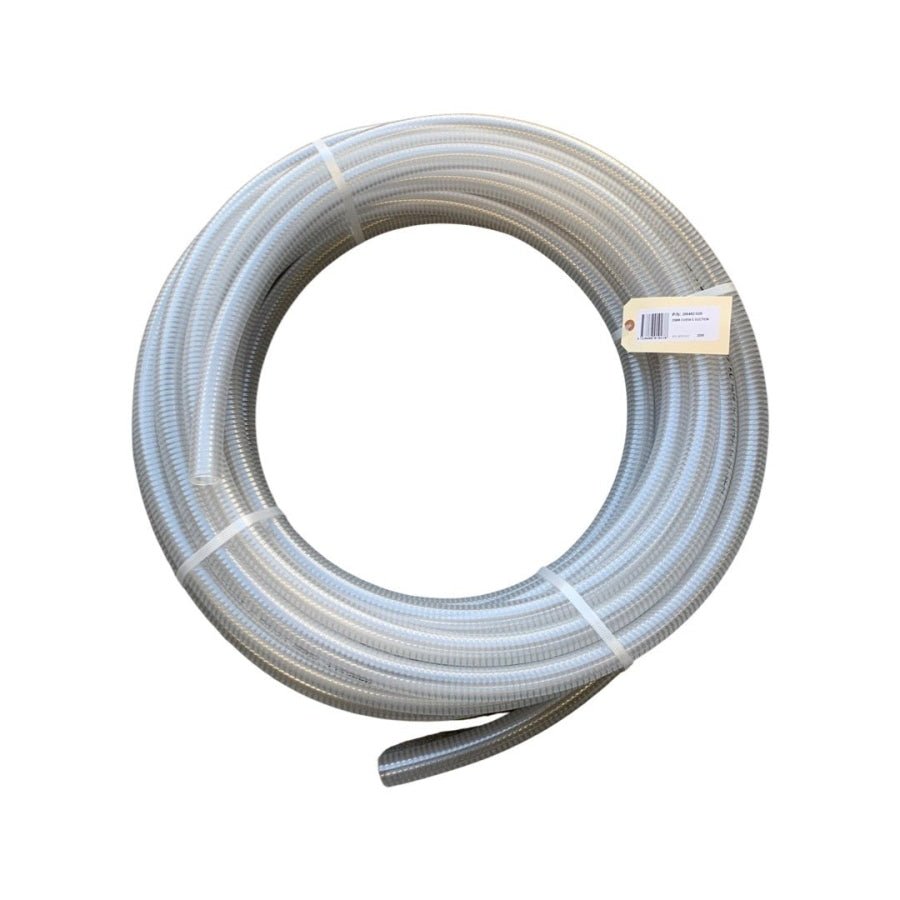

BARFELL Clearview S Beverage Suction Delivery Hose 20mt

Size
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

Length: 20 metres

An exceptionally flexible, clear suction/discharge hose suitable for food and beverages. The clear rigid helix makes the hose completely transparent. It is UV light resistant and conforms to AS2070 1999 and EU2022-72-EC.

Applications

Suction of any fluidthat requires a food grade hose including wineries, milk collection or processing, canneries, and food processing plants. It can be used for the suction or delivery of wine & spirits to 28 1/4 proof.

Colour: Clear with Clear Rigid PVC Spiral

Temperature Range: -5°C to +60°C

Chemical Resistance: Excellent

Flexibility: Excellent

Abrasion Resistance: Good

Conforms to: Australian Standard AS2070, European Standard EU2002-72-EC, certified phenol free.

Made in Australia

Nominal in mm's

I.D.

Nominal in mm's

O.D.

Vacuum Rating

KPa/20℃

Working Pres.@ 20℃ Mpa P.S.I. Weight Kg/m Min Bend Radius in mm
25 32 -90.0 145 0.43 120
32 39.6 -90.0 130 0.65 150
38 45.8 -90.0 130 0.70 200
50.8 60.2 -90.0 102 1.05 270
63.5 73.5 -90.0 87 1.44 330
76.2 87.8 -90.0 87 1.98 440
101 114.4 -90.0 73 3.14 620
