HB251010-020
Coil length: 20 metres

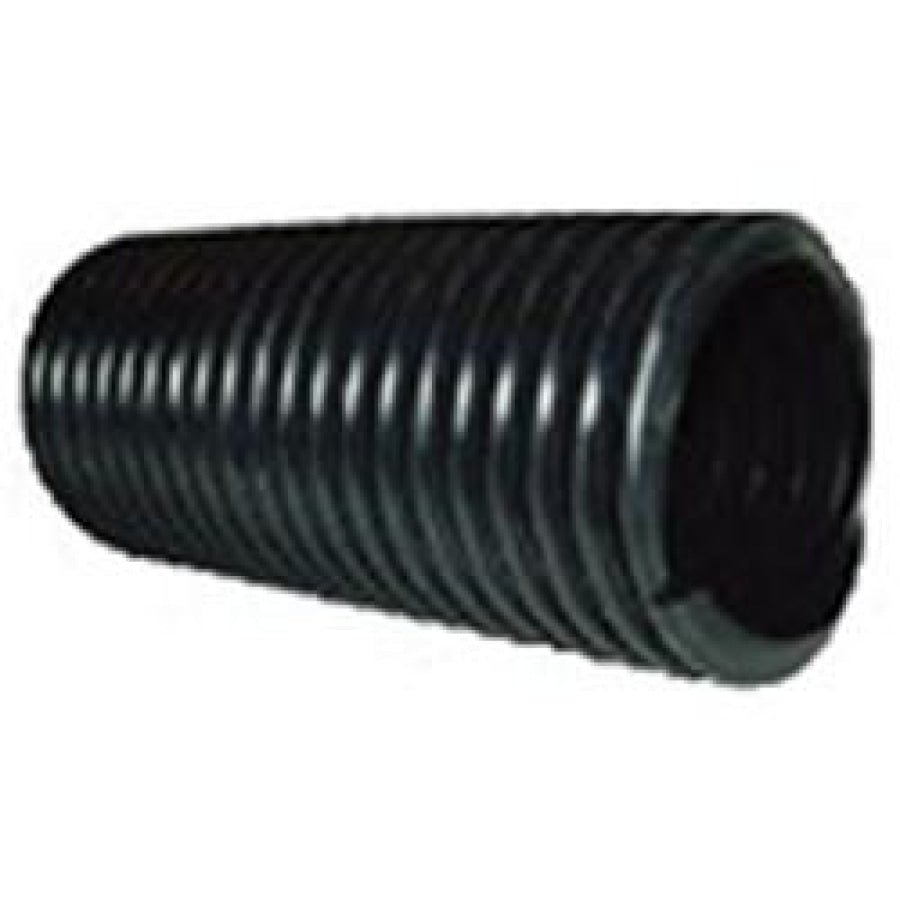

A Lightweight, flexible Air Seeder Hose also suitable for many other less demanding applications.
Application:Secondary and tertiary lines on air seeder machines. Also suitable for water conveyance, ventilation duct on business machines and dust collection.
UV Light stabilised
Colour: Black
Made in Australia
* 12.5mm & 16mm hoses are grey in color

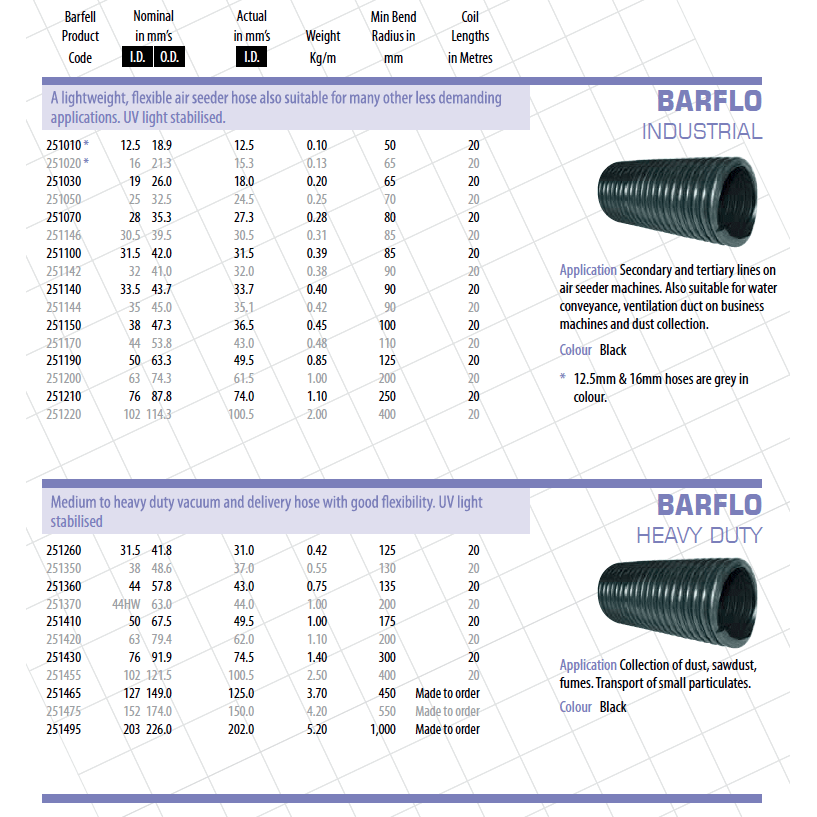

| Nominal in mm’s I.D. |
Nominal in mm’s O.D. |
Actual in mm’s I.D. |
Weight in Kg/m | Min Bend Radius in mm |
| 12.5 | 18.9 | 12.5 | 0.1 | 50 |
| 16 | 21.3 | 15.3 | 0.13 | 65 |
| 19 | 26 | 18 | 0.2 | 65 |
| 25 | 32.5 | 24.5 | 0.25 | 70 |
| 28 | 35.3 | 27.3 | 0.28 | 80 |
| 30.5 | 39.5 | 30.5 | 0.31 | 85 |
| 31.5 | 42 | 31.5 | 0.39 | 85 |
| 32 | 41 | 32 | 0.38 | 90 |
| 33.5 | 43.7 | 33.7 | 0.4 | 90 |
| 35 | 45 | 35.1 | 0.42 | 90 |
| 38 | 47.3 | 36.5 | 0.45 | 100 |
| 44 | 53.8 | 43 | 0.48 | 110 |
| 50 | 63.3 | 49.5 | 0.85 | 125 |
| 63 | 74.3 | 61.5 | 1 | 200 |
| 76 | 87.8 | 74 | 1.1 | 250 |
| 102 | 114.3 | 100.5 | 2 | 400 |
