HA-49200-06-20

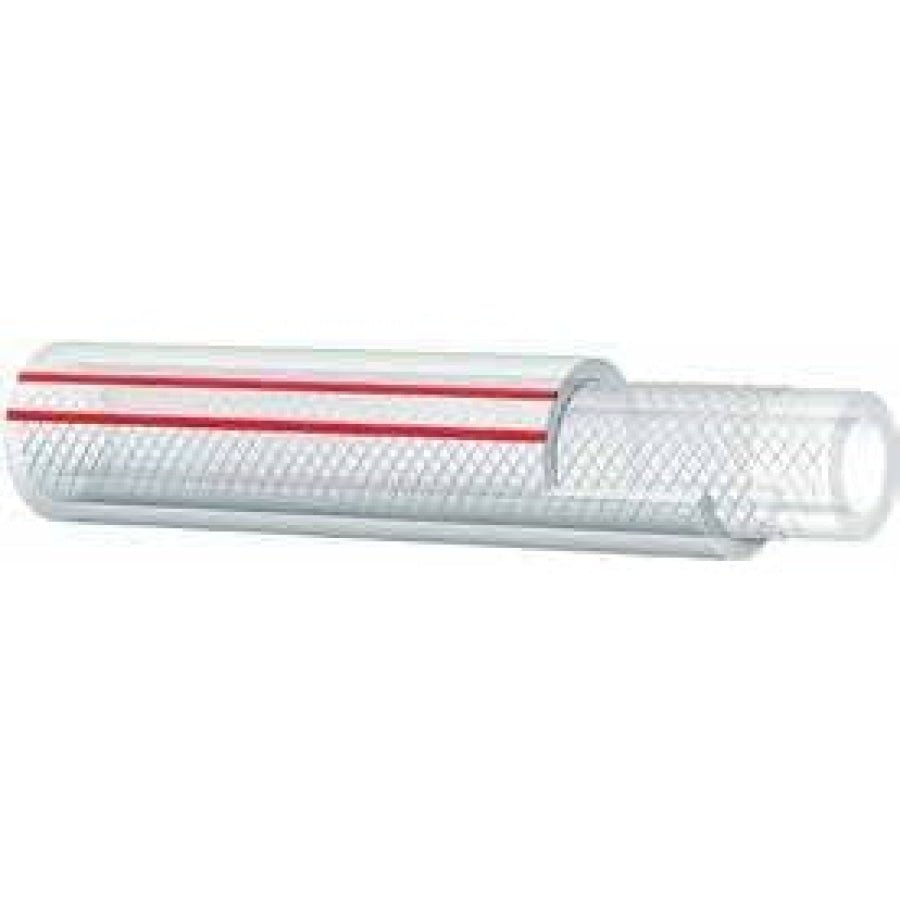

Tube: transparent PVC.
Reinforcement: high tensile textile cords.
Cover: transparent PVC with longitudinal red stripes - abrasion and ozone resistant.
Application: general purpose food quality.
Sterilize with 5% soda solution.
Constant operation: -5 ÆC +60 ÆC (+23 ÆF +140 ÆF)
|
ID (mm) |
ID (in) |
OD (mm) |
WP (bar) |
WP (psi) |
BP (bar) |
BP (psi) |
|||||||||||||||||||
| 6,0 | 1/4" | 11,0 | 20 | 300 | 60 | 900 | |||||||||||||||||||
| 8,0 | 5/16" | 13,0 | 15 | 225 | 45 | 675 | |||||||||||||||||||
| 10,0 | 3/8" | 15,0 | 15 | 225 | 45 | 675 | |||||||||||||||||||
| 13,0 | 1/2" | 19,0 | 10 | 150 | 30 | 450 | |||||||||||||||||||
| 16,0 | 5/8" | 22,0 | 10 | 150 | 30 | 450 | |||||||||||||||||||
| 19,0 | 3/4" | 25,0 | 10 | 150 | 30 | 450 | |||||||||||||||||||
| 25,0 | 1" | 32,0 | 10 | 150 | 30 | 450 | |||||||||||||||||||
| 32,0 | 1 1/4" | 42,0 | 7 | 100 | 21 | 300 | |||||||||||||||||||
| 38,0 | 1 1/2" | 48,0 | 7 | 100 | 21 | 300 | |||||||||||||||||||
| 51,0 | 2" | 63,0 | 6 | 100 | 18 | 300 | |||||||||||||||||||
