ALFAGOMMA

HA-400LE025-01A

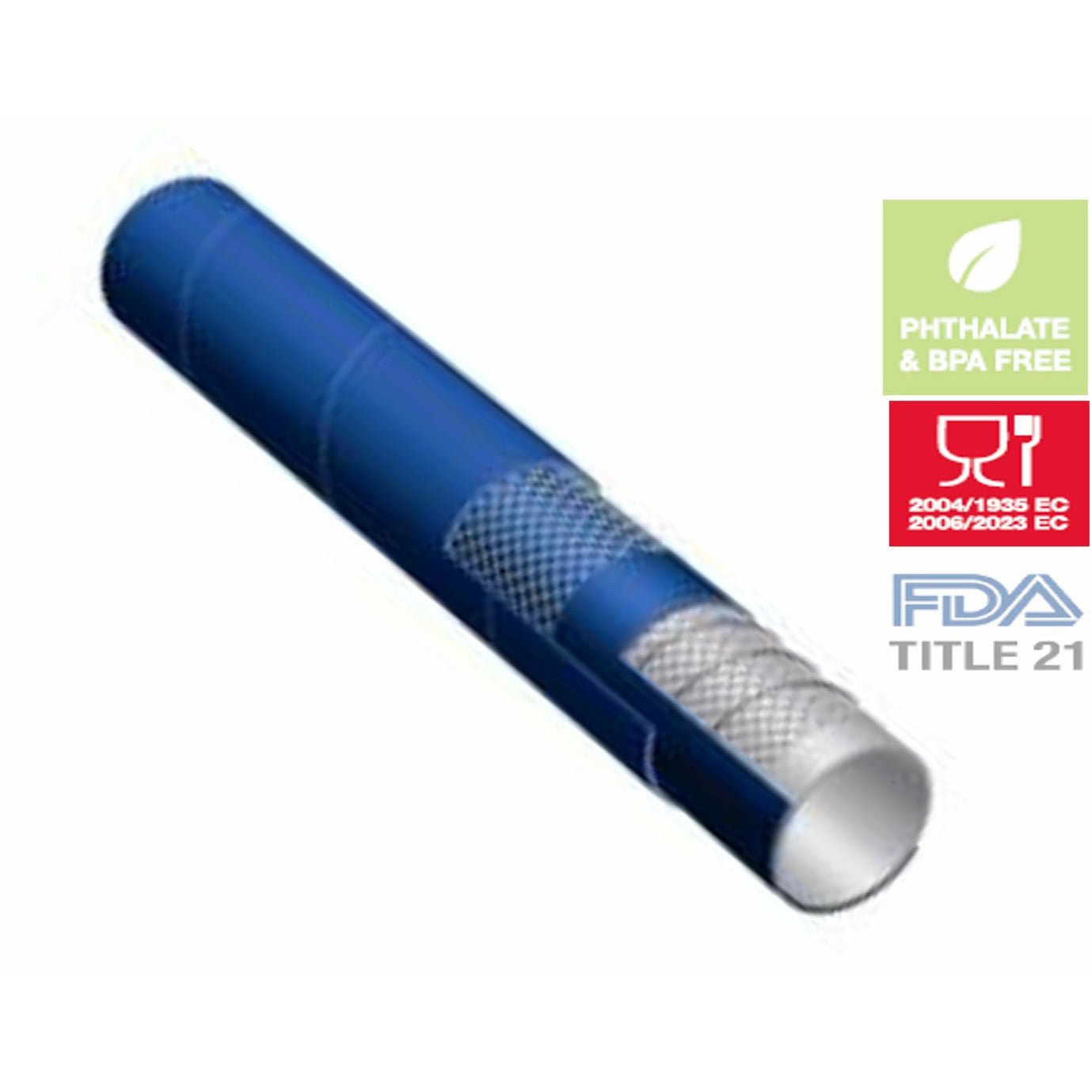

ALFAGOMMA 400LE Multi-Purpose Food Suction & Delivery Hose Asembly

Size
Length
Add to Wishlist

Please Note: You have an item(s) in your cart which is more than 22kg, meaning you will be charged Freight rates and rates will be calculated at the checkout.

Shipping Calculator

Get Rates

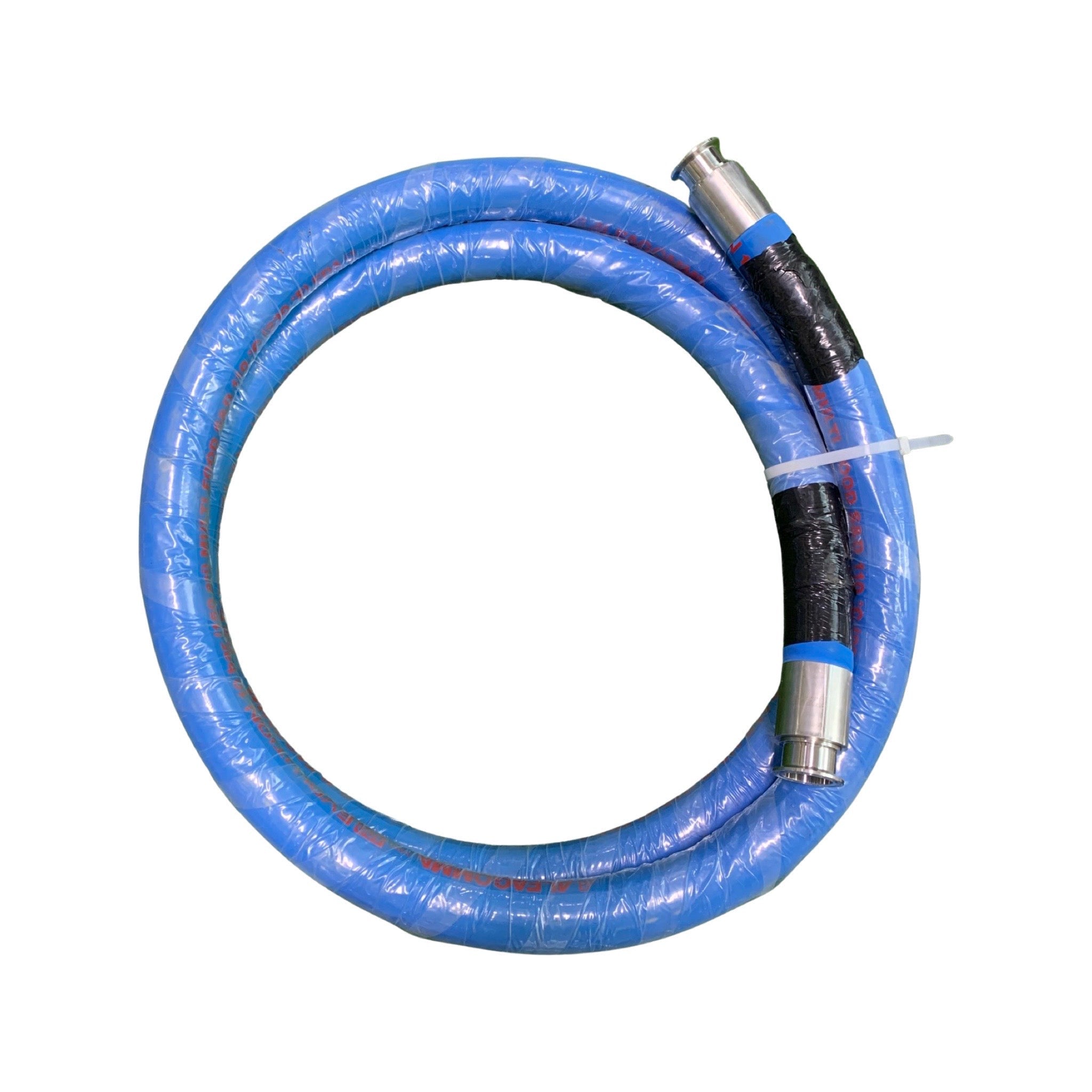

ALFAGOMMA 400LE Multi-Purpose Food Suction & Delivery Hose Assembled with Triclover Ends

Longer length assemblies available upon request.

Working Pressure:150PSI / 10 bar

Temperature: -30°C +110°C (-22°F +230°F) Fat foods -30°C +120°C (-22°F +248°F)

Tube: White food grade NBR

Reinforcement: High tensile textile cords with embedded steel helix wire
Cover: Blue synthetic rubber - abrasion and ozone resistant

Application: Liquid fat food and alcoholic beverages suction and delivery max 75% proof Sterilize with 130°C steam (+266°F) for 30 minutes or with 5% soda solution

Safety factor: 3:1

Approvals: FDA - DM 21/03/73, Italian DM and 3A sanitary standards class II approval for liquid food transfer

I.D. O.D. Bend Radius Vacuum Weight
mm inch mm mm % Per Mt/Kg
25 1 36 50 100 0.690
38 1 1/2 49 76 100 0.980
38 1 1/2 49 76 100 0.980
51 2 63 102 100 1.270
76 3 89 152 90 2.400
