HA-605AA-19-20

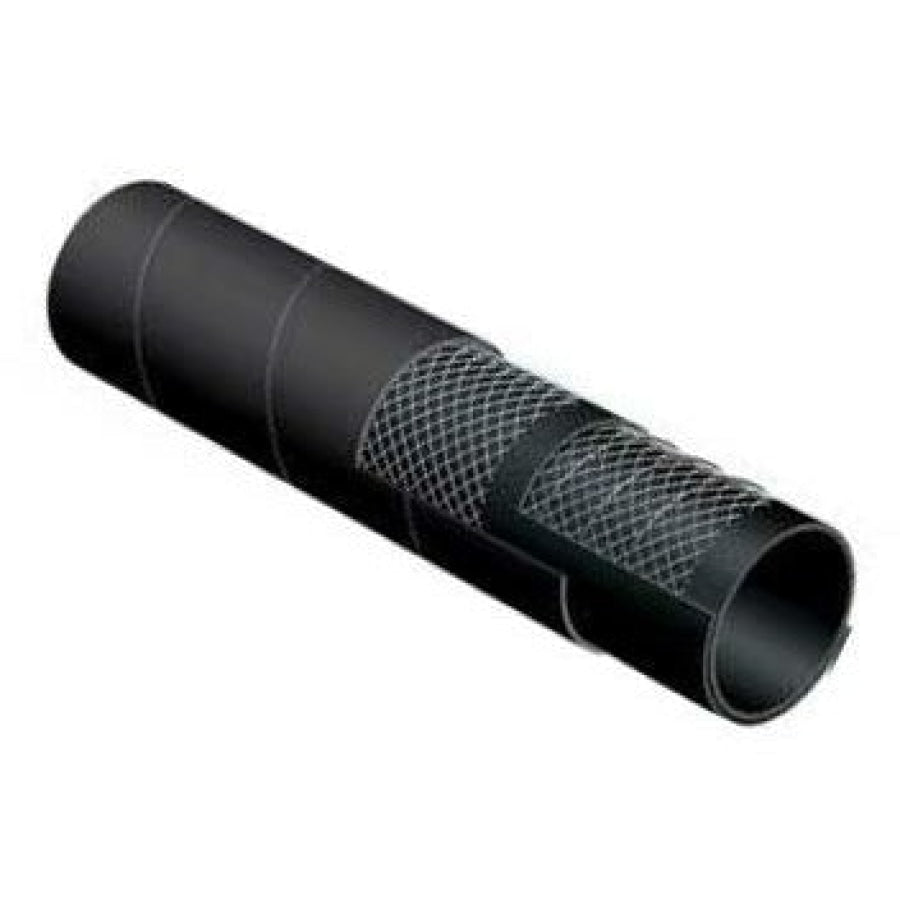

Fuel-oil Suction and Delivery Hose 10 bar (150 psi)
exceed SAE 100R4 - SAE J2006/R2 - ISO 13363/2/A+B
Tube: black conductive NBR.
Reinforcement: high tensile textile cords with embedded steel helix wire.
Cover:black CR - abrasion, ozone, hydrocarbon and flame resistant.
Application: fuel and oil suction and delivery. Specially designed for tank truck and general industrial applications.
Also suitable for marine wet exhaust and bilge pump connection.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
|
ID (mm) |
ID (in) |
OD (mm) |
WP (bar) |
WP (psi) |
BP (bar) |
BP (psi) |
BR (mm) |
Vacuum (%) | ||||||||||||||||||
| 19,0 | 3/4" | 30,0 | 10 | 150 | 30 | 450 | 38 | 100 | ||||||||||||||||||
| 19,0 | 3/4" | 30,0 | 10 | 150 | 30 | 450 | 38 | 100 | ||||||||||||||||||
| 25,0 | 1" | 36,0 | 10 | 150 | 30 | 450 | 50 | 100 | ||||||||||||||||||
| 25,0 | 1" | 36,0 | 10 | 150 | 30 | 450 | 50 | 100 | ||||||||||||||||||
| 32,0 | 1 1/4" | 43,0 | 10 | 150 | 30 | 450 | 64 | 100 | ||||||||||||||||||
| 32,0 | 1 1/4" | 43,0 | 10 | 150 | 30 | 450 | 64 | 100 | ||||||||||||||||||
| 38,0 | 1 1/2" | 49,0 | 10 | 150 | 30 | 450 | 76 | 100 | ||||||||||||||||||
| 38,0 | 1 1/2" | 49,0 | 10 | 150 | 30 | 450 | 76 | 100 | ||||||||||||||||||
| 45,0 | 1 3/4" | 56,0 | 10 | 150 | 30 | 450 | 180 | 100 | ||||||||||||||||||
| 51,0 | 2" | 62,0 | 10 | 150 | 30 | 450 | 102 | 100 | ||||||||||||||||||
| 51,0 | 2" | 62,0 | 10 | 150 | 30 | 450 | 102 | 100 | ||||||||||||||||||
| 63,0 | 2 1/2" | 76,0 | 10 | 150 | 30 | 450 | 189 | 90 | ||||||||||||||||||
| 76,0 | 3" | 89,0 | 10 | 150 | 30 | 450 | 228 | 90 | ||||||||||||||||||
| 76,0 | 3" | 89,0 | 10 | 150 | 30 | 450 | 228 | 90 | ||||||||||||||||||
| 90,0 | 3 1/2" | 104,0 | 10 | 150 | 30 | 450 | 360 | 90 | ||||||||||||||||||
| 102,0 | 4" | 116,0 | 10 | 150 | 30 | 450 | 306 | 90 | ||||||||||||||||||
| 102,0 | 4" | 116,0 | 10 | 150 | 30 | 450 | 306 | 90 | ||||||||||||||||||
| 127,0 | 5" | 145,0 | 10 | 150 | 30 | 450 | 508 | 80 | ||||||||||||||||||
| 152,0 | 6" | 170,0 | 10 | 150 | 25 | 375 | 608 | 80 | ||||||||||||||||||
| 203,0 | 8" | 225,0 | 10 | 150 | 25 | 375 | 812 | 70 | ||||||||||||||||||
