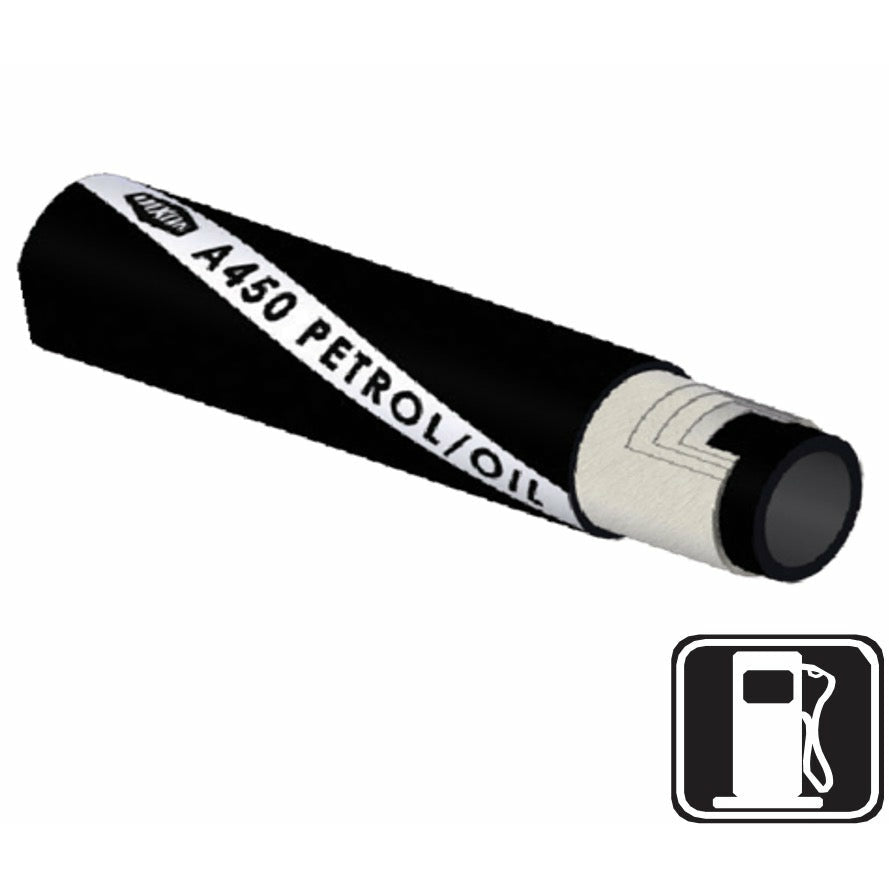

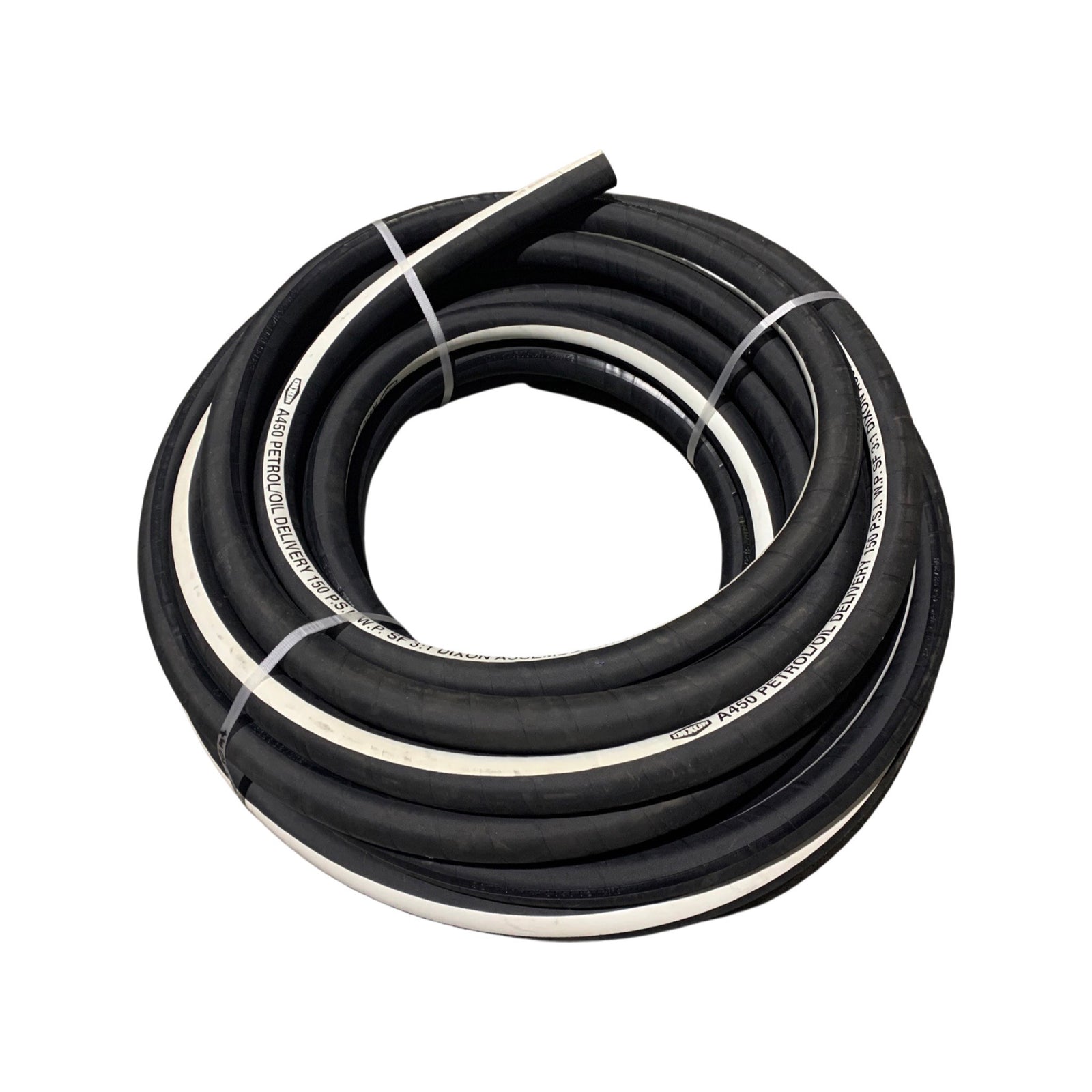

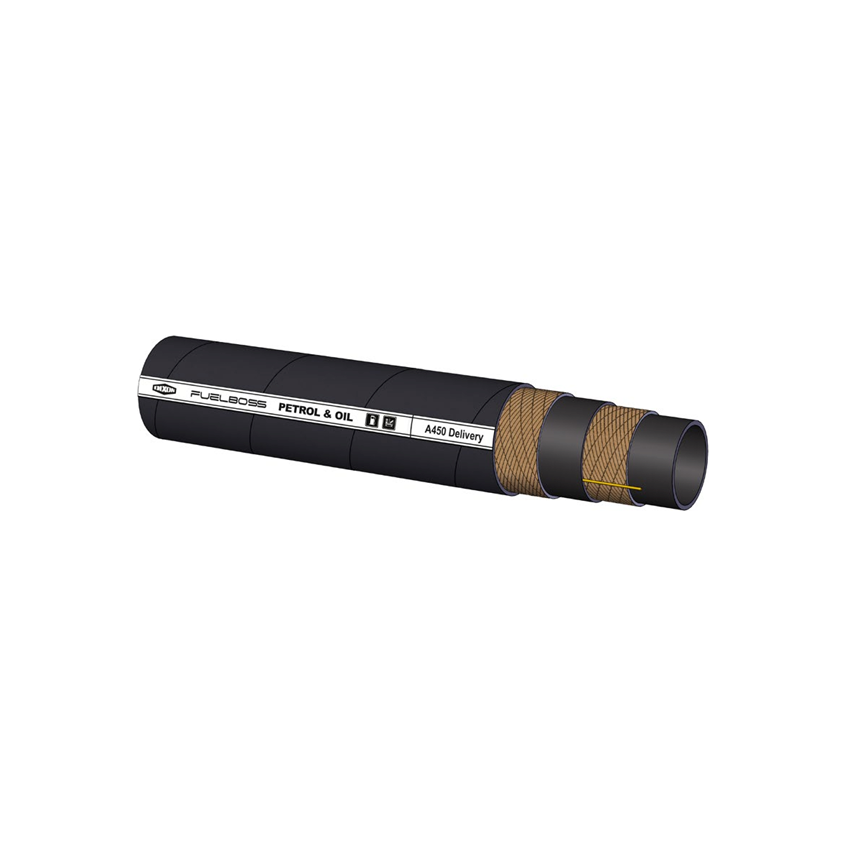

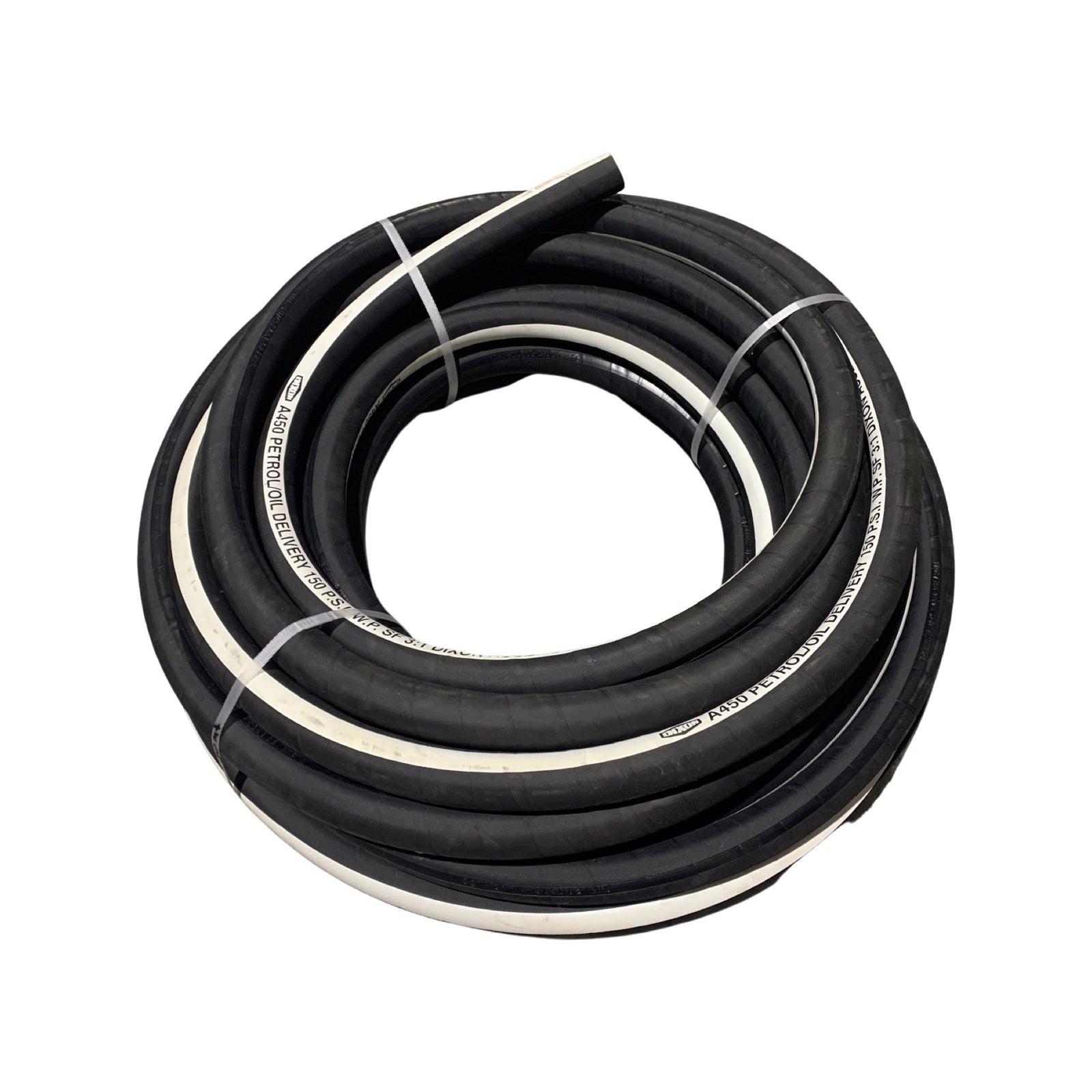

HD-A450-20-10
Application: Used for transfer on a wide range of petroleum products up to 50% aromatic content.
Tube: Black, smooth, NBR conductive tube
Reinforcement: High strength synthetic cord
Cover: Black, smooth (wrapped finish), high grade conductive NBR cover
Temperature: -20°C to 70°C
Working Pressure: 145PSI
Burst Pressure: 435PSI
| Dimensions (mm) | Bend Radius (mm) | Weight kg/mtr | |
| ID | OD | ||
| 20 | 30 | 240 1 | 0.34 |
| 25 | 35 | 300 1 | 0.42 |
| 32 | 42 | 384 1 | 0.55 |
| 38 | 48 | 456 1 | 0.78 |
| 51 | 61 | 612 1 | 1.21 |
| 63 | 75 | 762 1 | 1.55 |
| 76 | 90 | 912 1 | 1.66 |
