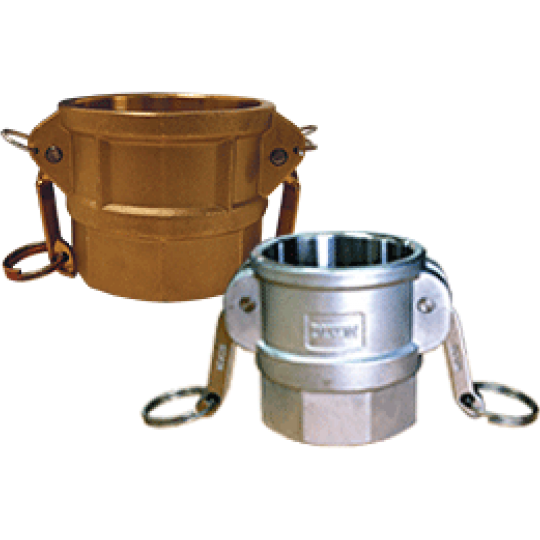

DIXON Camlock Type D Female Coupler x Female BSP

Applications:

The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more.

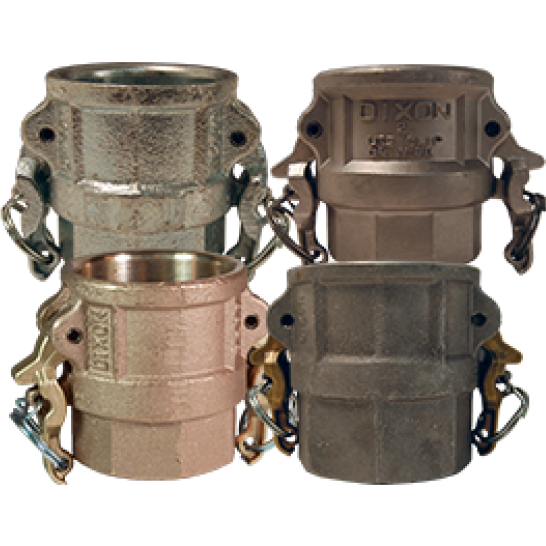

Construction:

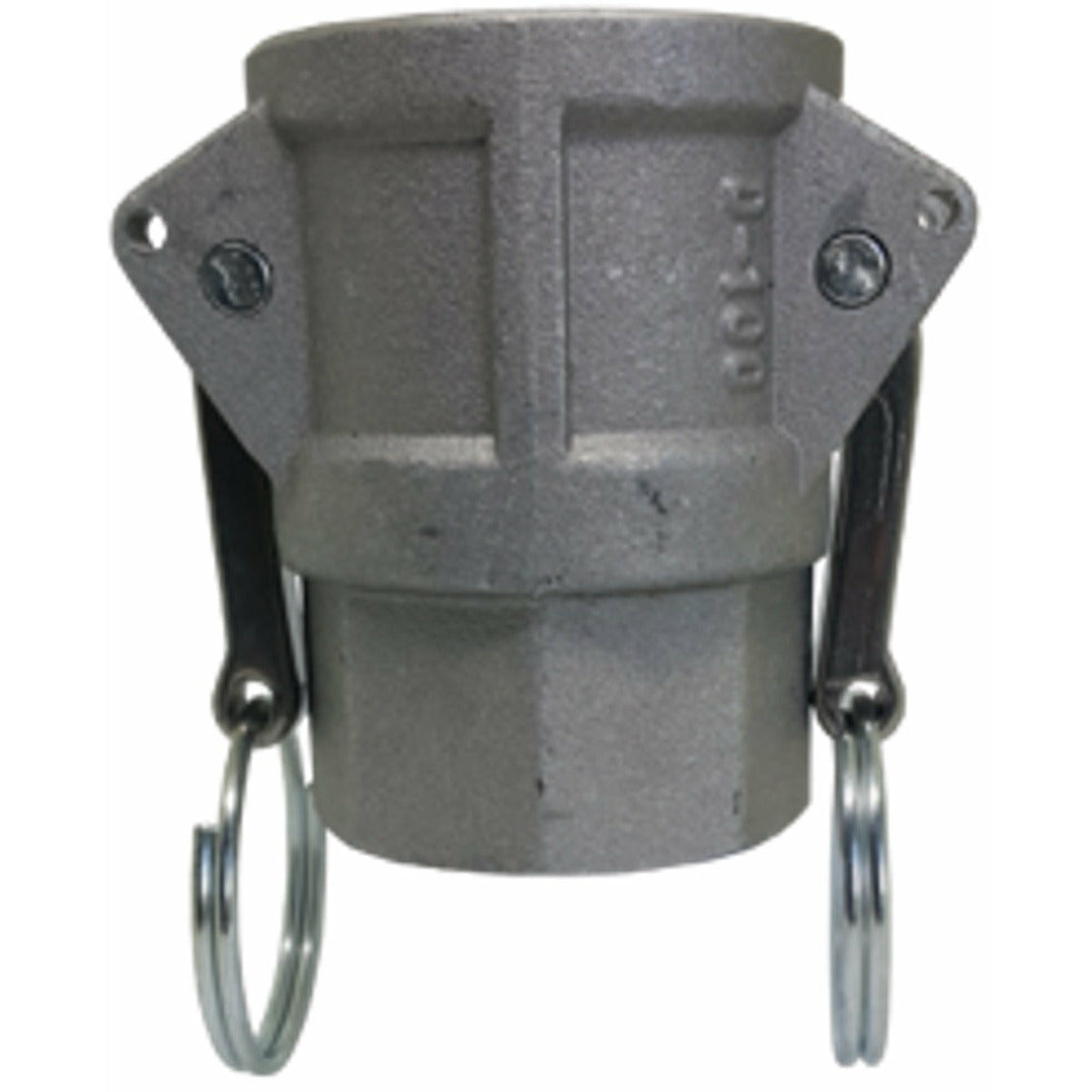

Aluminium:Die Cast Aluminum body, stainless steel levers and mild steel pins

Stainless Steel: Stainless steel body, levers and pins

Bronze: Bronze body with stainless steel levers and pins

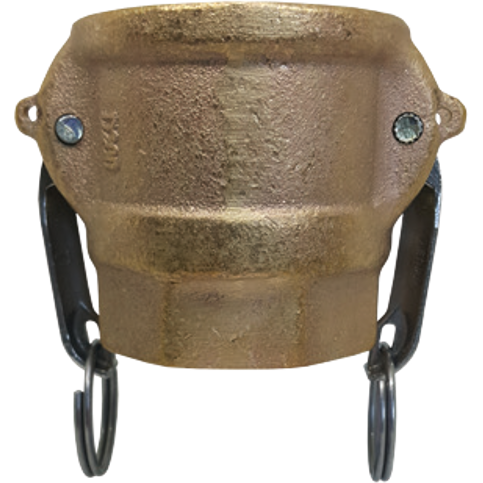

Brass: Brass body with stainless steel levers and pins

Safety Notes:

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating is based on the seal of the mating part
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
